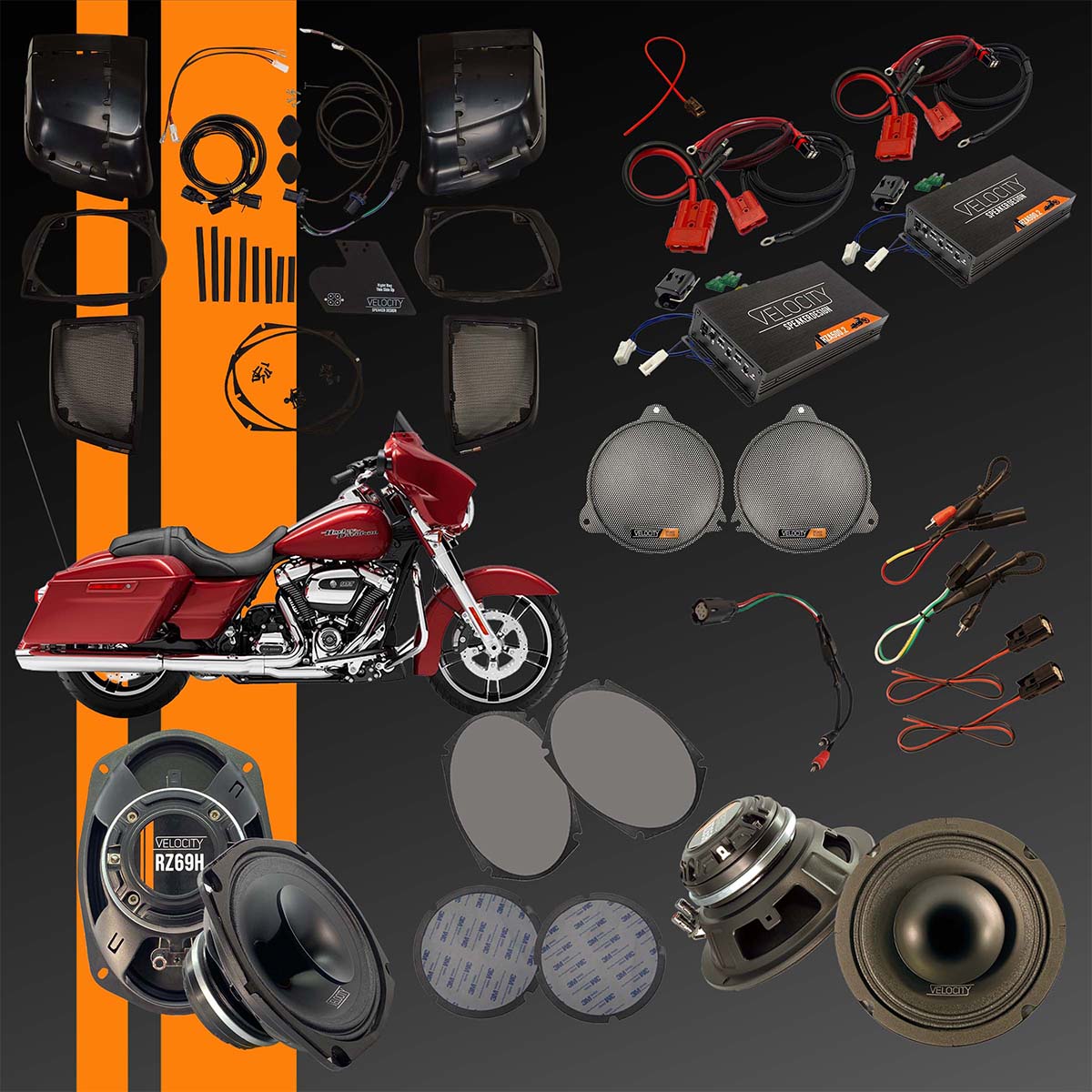

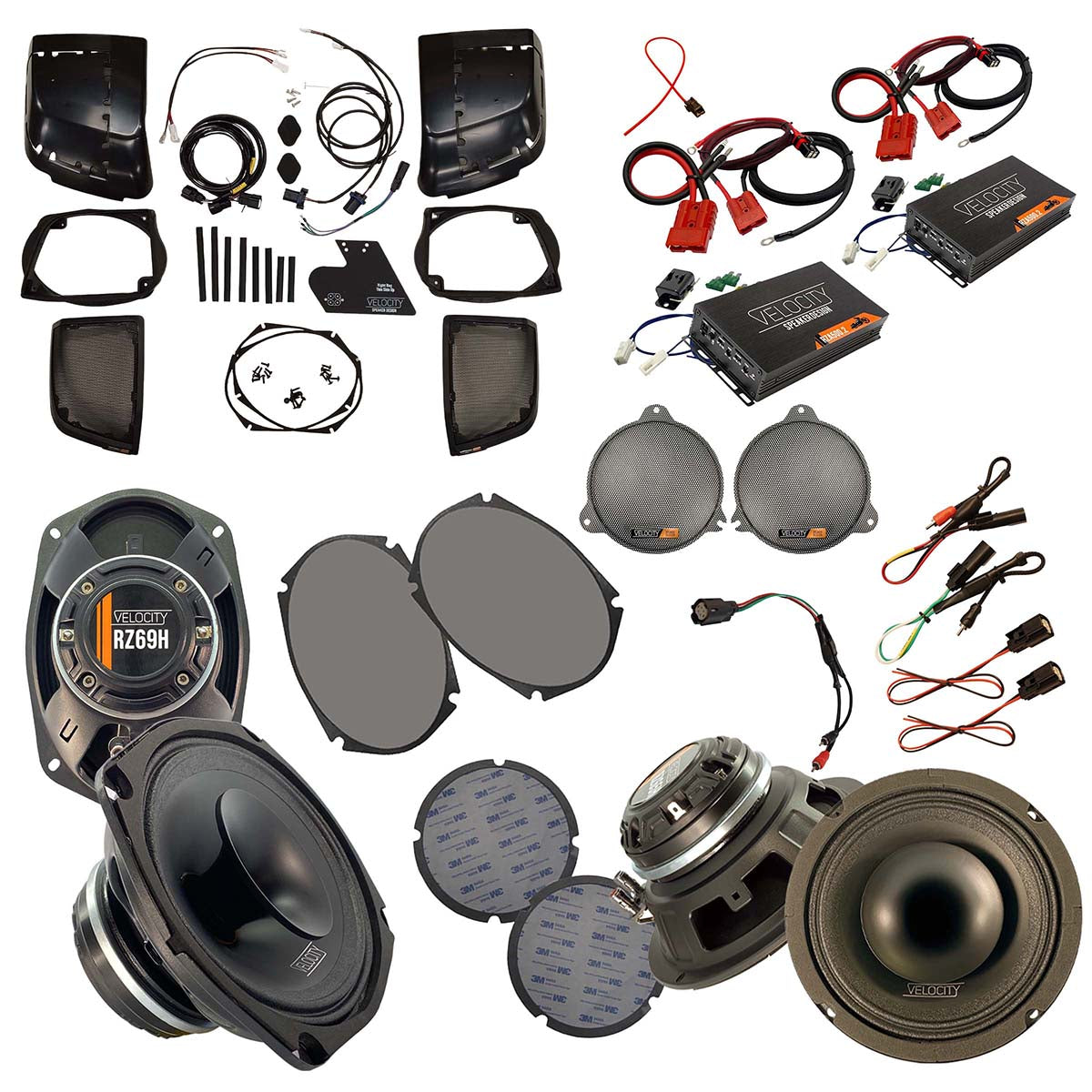

4-Speaker Velocity CoaxHorn Package 2014-2023 Street Glide AHB-FS-14-PRO-SG

The AHB-FS-14UP-PRO-SG Full System is engineered for riders who demand powerful, high-output front and rear audio performance without stepping into Elite or Ultimate tiers. Built around AHB’s PRO CoaxHorn fairing speakers and bag lid speakers, this system produces exceptional clarity, strong midbass response, and impressive overall volume—perfect for aggressive riding or highway touring.

A matched PRO Dual Amp Setup ensures clean, consistent power delivery to both front and rear stages. With factory-safe plug-and-play wiring and tour-ready durability, installation is quick and free of CANBUS complications. If you want a high-performance front-and-rear audio foundation, the PRO Full System provides the ideal balance of output, loudness, and value while retaining headroom for future Elite or Ultimate expansions.

KEY FEATURES

• PRO Horn Fairing Speakers

  High-efficiency horn-loaded drivers deliver razor-sharp clarity and upper-mid projection.

• PRO Bag Speakers

  Tuned for high output with strong midbass reinforcement.

• Matched PRO Amplifier Stack

  Optimized to deliver clean, stable power to both front and bag speakers.

• Complete Plug-and-Play Wiring

  No cutting or splicing of factory wiring; CANBUS-safe and fully reversible.

• Highway-Ready System

  Designed to overcome wind and road noise at 70–90 mph riding speeds.

• Loud, clean, and detailed sound at any speed.
• Powerful front-stage imaging delivered by horn-loaded technology.
• Stronger, punchier rear fill thanks to high-output bag speakers.
• OEM-safe installation using AHB’s plug-and-play wiring.
• Professional-grade audio without the cost of Elite or Ultimate packages.

RZA500.2 Specs:
Peak Power: 650 Watts
RMS Power:
2 x 275W @ 2 Ohms
2 x 150W @ 4 Ohms
1 x 550W @ 4 Ohms (bridged mode)
Frequency Response: 20 Hz–25 kHz
Crossover Range: 40 Hz–400 Hz (12 dB slope)
Signal Input Range: 0.41V–10V (balanced high/low level)
Efficiency: 87% at full power
Dimensions:
Housing size: 7.125 x 4.125 x 1.5625"
With Mounting bracket: 8.0 x 4.125 x 1.5625"

RZ65H Specs:
Impedance 4
RE 3.188 Ohms
FS 92 Hz
QMS 6.711
QES .3947
QTS .3727
Sens 101 db
RMS 300W (pair)
Max 600W (pair)
Tune for:
100 - 150 Hz High Pass
24db - Linkwitz
