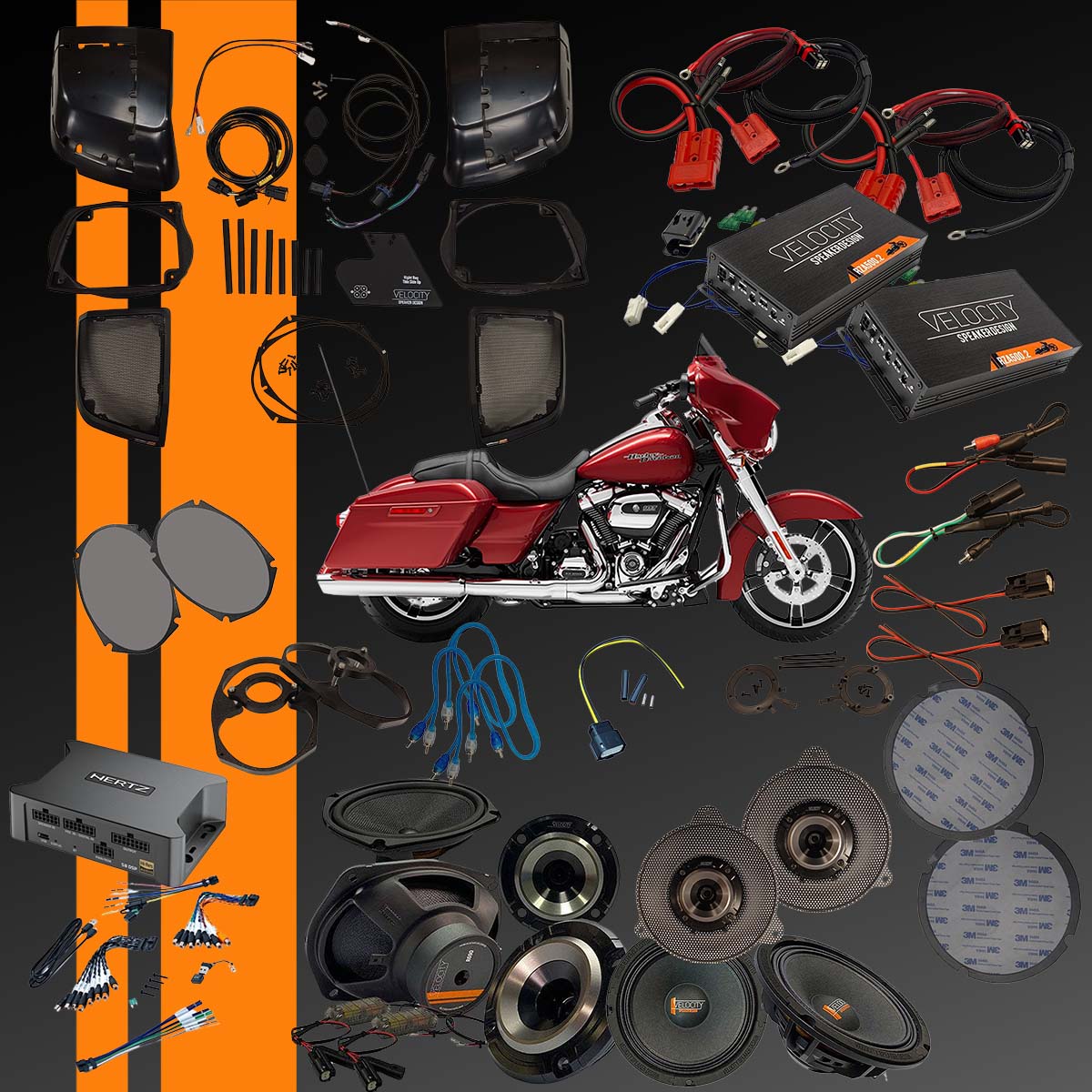

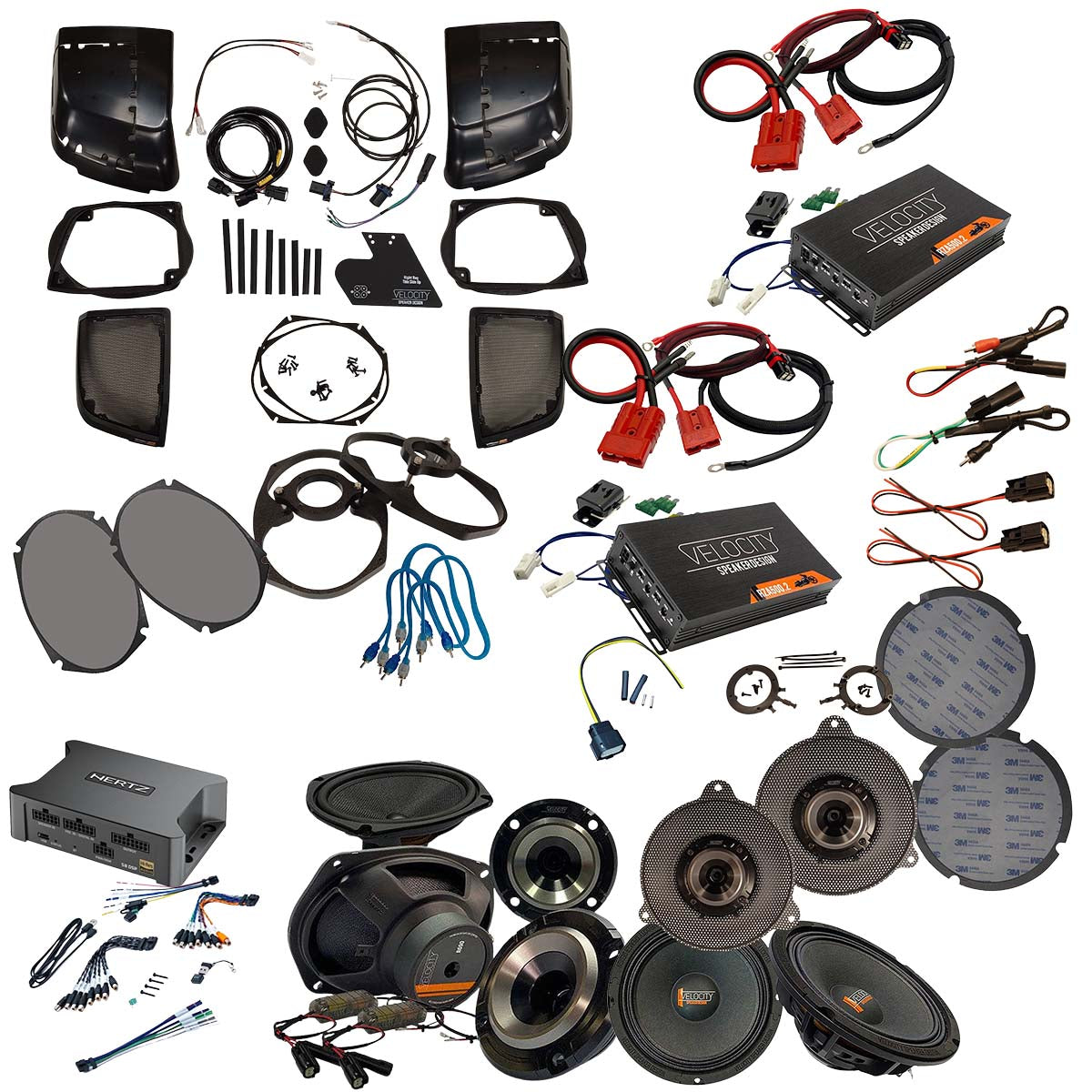

4-Speaker Velocity Overdrive Package 2014-2023 Street Glide AHB-FS-14-ELT-SG

The AHB-FS-14-ELT-SG Elite Full System is the ultimate motorcycle audio upgrade engineered for riders who demand the absolute highest performance from their sound system. Designed specifically for 2014-2023 Harley-Davidson Street Glide and Road Glide models, this Elite package delivers plenty of output, beautiful clarity, and dynamic accuracy through a combination of component compression horn technology, elite midbass drivers, and a dual-amplifier architecture with fully tunible DSP control.

The Elite Fairing Stage utilizes a premium compression horn tweeter component set + midbass pairing for maximum clarity and projection at highway speeds. In the rear, the Elite 6×9 component compression horn and midbass bag speakers supply exceptional volume and wide listening coverage. The Elite DSP amplifier delivers advanced, professional-grade sound shaping optimized for Harley fairing acoustics, while the secondary Elite power amplifier drives the rear stage with massive headroom.

The included Ultimate-grade wiring, Road Glide/Street Glide specific fitment components, and plug-and-play harnessing ensure a clean installation. If you want the most powerful and dynamic system available, the Elite Full System sets the new standard for high-performance Harley audio.

KEY FEATURES

• Elite Component Compression Horn tweeters with 6.5” midbass Fairing Speakers

  Maximum projection, wide dispersion, and crystal-clear highs—even at highway speeds.

• Elite Component Compression Horn tweeters with 6×9 midbass Bag Lid Speakers

  Extreme rear-stage output with superior midrange clarity.

• Dual Amplifier Architecture

  Dedicated amplifiers for fairing speakers + bag lid speakers

• DSP-Optimized Tuning

  Pre-engineered EQ maps designed for Harley fairings and saddlebags.

• Ultimate Wiring Package

  Dual 8ga amp power kit, fairing harness, bag harness, and expansion leads.

• Plug-and-Play Installation

  No cutting or splicing of the stock harnesses.

• Upgrade-Ready Platform

  Supports future additions such as Elite Tour Pack or Ultimate Full System expansions.

BENEFITS

• Unmatched loudness and clarity — the most powerful system AHB offers.
• Professional-grade DSP tuning ensures perfect audio detail at any speed.
• Full coverage front and rear for a balanced, high-impact soundstage.
• Future-proof architecture built to expand into AHB’s Ultimate systems.
• High-efficiency design that maximizes performance with minimal distortion.
• Road-tested reliability engineered specifically for Harley touring conditions.

RZ75H:
Impedance 4 Ohms
RE 3.95 Ohms
FS 1571 Hz
QMS 6.129
QES 2.192
QTS 1.614
L @ 10Khz .01128 Mh
Sens 107 db

R65:
Power Handling - Continuous - 150Wrms
Power Handling - Peak - 400Wpeak
Impedance - 4Ω
Frequency Response - 100Hz to 10kHz
Magnet Neodymium
Cone Water repellent pressed paper

RZA500.2:
Peak Power: 650 Watts
RMS Power:
2 x 275W @ 2 Ohms
2 x 150W @ 4 Ohms
1 x 550W @ 4 Ohms (bridged mode)
Frequency Response: 20 Hz–25 kHz
Crossover Range: 40 Hz–400 Hz (12 dB slope)
Signal Input Range: 0.41V–10V (balanced high/low level)
Efficiency: 87% at full power
Dimensions:
Housing size: 7.125 x 4.125 x 1.5625"
With Mounting bracket: 8.0 x 4.125 x 1.5625"
