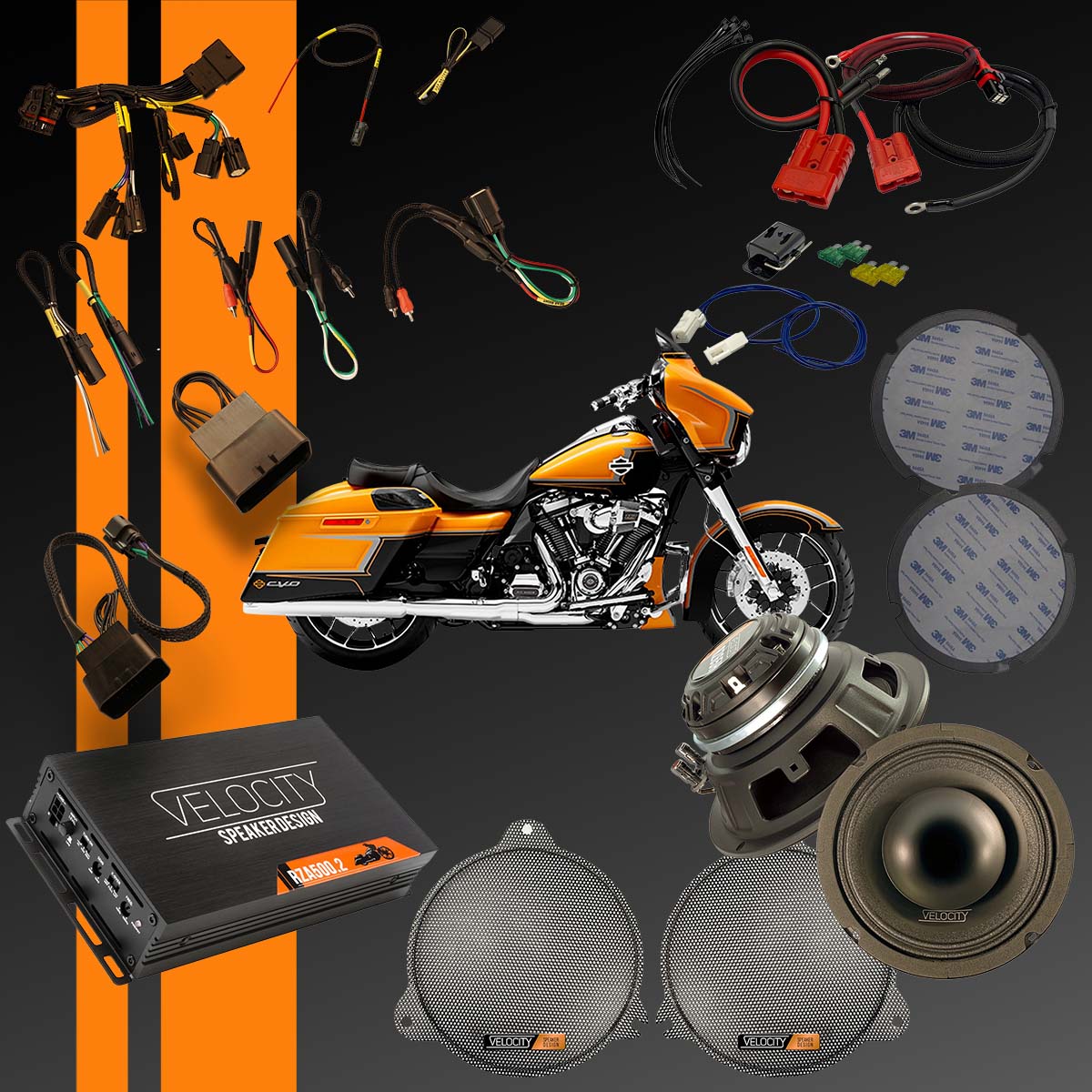

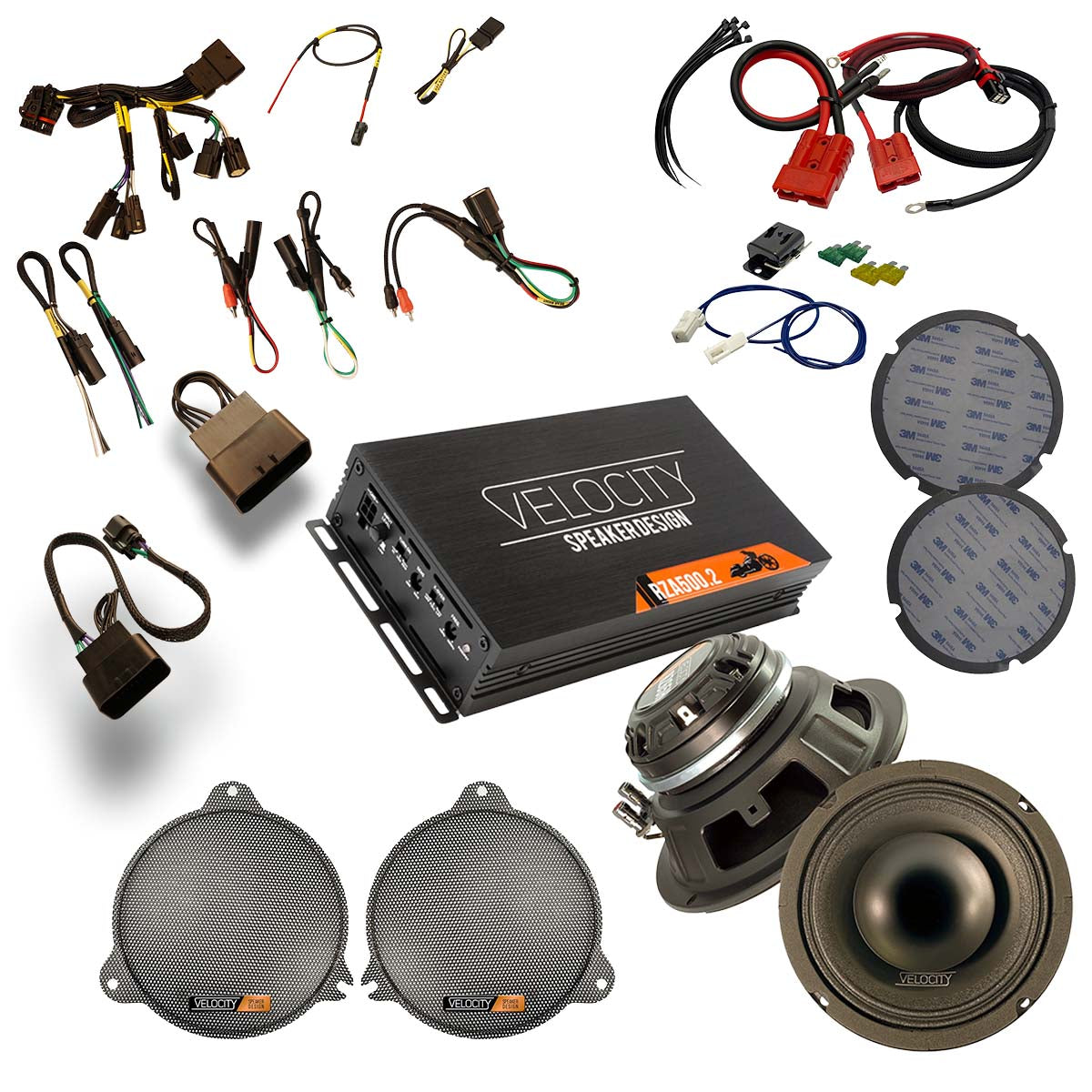

CVO Street Glide Velocity CoaxHorn Fairing Package AHB-FP-14-PRO-CVO-SG

The AHB-FP-14-PRO-CVO-SG is a PRO-level full motorcycle audio system for 2014-2023 Harley-Davidson CVO Street Glide models. Featuring horn-loaded fairing speakers, high-output bag speakers, a dedicated Dual amplifiers, and a complete plug-and-play wiring architecture, this system delivers extreme clarity, loudness, and full-body sound on the highway.

LONG DESCRIPTION

The AHB-FP-14-PRO-CVO-SG Full Fairing System is engineered for riders who demand powerful, high-output front audio performance without stepping into Elite or Ultimate tiers. Built around AHB’s PRO CoaxHorn fairing speakers and bag lid speakers, this system produces exceptional clarity, strong midbass response, and impressive overall volume—perfect for aggressive riding or highway touring.

A PRO Amp Setup ensures clean, consistent power delivery to both front and rear stages. With factory-safe plug-and-play wiring and tour-ready durability, installation is quick and free of CANBUS complications. If you want a high-performance front-and-rear audio foundation, the PRO Fairing System provides the ideal balance of output, loudness, and value while retaining headroom for future Elite or Ultimate expansions.

KEY FEATURES

• PRO Horn Fairing Speakers

  High-efficiency horn-loaded drivers deliver razor-sharp clarity and upper-mid projection.

• Matched PRO Amplifier Stack

  Optimized to deliver clean, stable power to front speakers.

• Highway-Ready System

  Designed to overcome wind and road noise at 70–90 mph riding speeds.

• Factory Fitment

  Fairing and bag speakers integrate seamlessly using OEM mounting points, Road Glide installation requires heating of pods modification.

BENEFITS

• Loud, clean, and detailed sound at any speed.
• Powerful front-stage imaging delivered by horn-loaded technology.
• Stronger, punchier rear fill thanks to high-output bag speakers.
• OEM-safe installation using AHB’s plug-and-play wiring.
• Expandable to PRO 4-speaker upgrades, Tour Pack kits, or Elite front systems.
• Professional-grade audio without the cost of Elite or Ultimate packages.

RZA500.2 Specs:
Peak Power: 650 Watts
RMS Power:
2 x 275W @ 2 Ohms
2 x 150W @ 4 Ohms
1 x 550W @ 4 Ohms (bridged mode)
Frequency Response: 20 Hz–25 kHz
Crossover Range: 40 Hz–400 Hz (12 dB slope)
Signal Input Range: 0.41V–10V (balanced high/low level)
Efficiency: 87% at full power
Dimensions:
Housing size: 7.125 x 4.125 x 1.5625"
With Mounting bracket: 8.0 x 4.125 x 1.5625"

RZ65H Specs:
Impedance 4
RE 3.188 Ohms
FS 92 Hz
QMS 6.711
QES .3947
QTS .3727
Sens 101 db
RMS 300W (pair)
Max 600W (pair)
Tune for:
100 - 150 Hz High Pass
24db - Linkwitz
