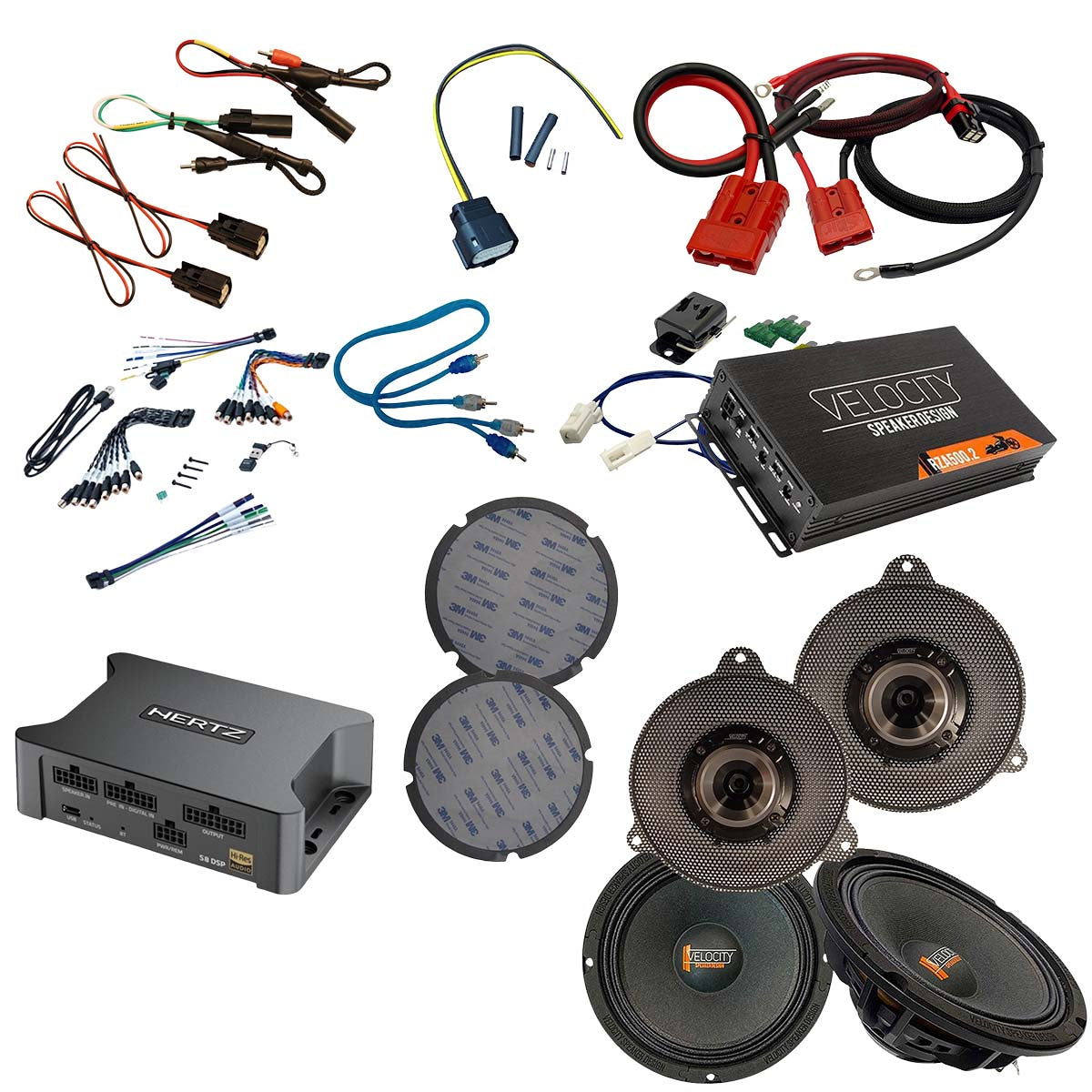

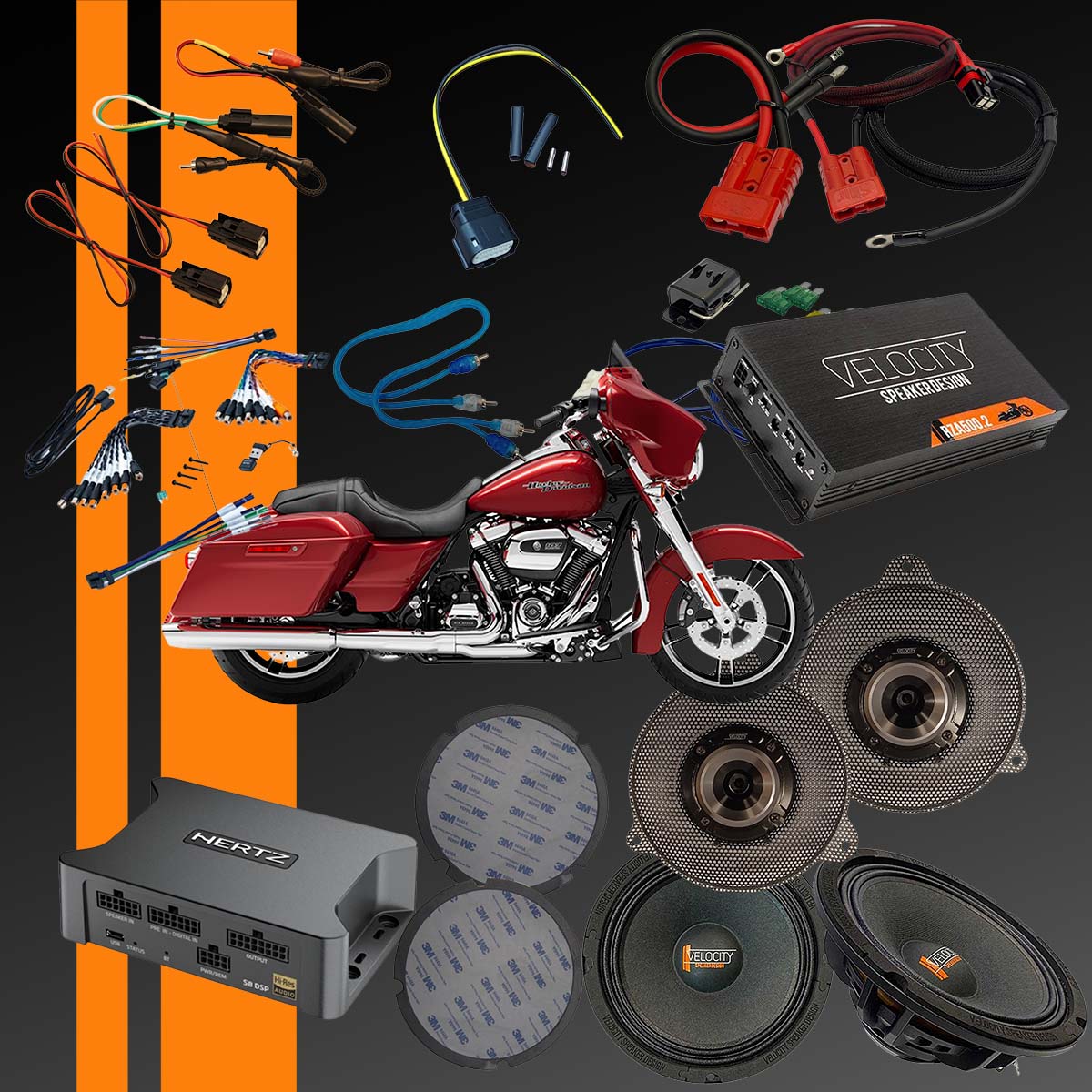

Velocity OverDrive Fairing Package 2014-2023 Street Glide AHB-FP-14-ELT-SG

The AHB-FP-14-ELT-SG Elite Fairing Package represents the highest level of front-stage motorcycle audio available for the 2014-2023 Street Glide models. Engineered for riders who demand ultimate clarity, maximum volume, and premium audio dynamics, this system pairs horn-loaded compression drivers with elite midbass speakers to overcome wind noise, road noise, and helmet acoustics at any speed.

Powered by AHB’s Elite DSP amplifier, the system is pre-configured with advanced EQ profiles calibrated specifically for the Street Glide batwing fairing. This ensures optimal performance without manual tuning. Installation is clean, OEM-safe, and fully plug-and-play using included harnesses, grilles, and install hardware. Whether you're building a high-end sound system or expanding to Elite bag or Ultimate full-system configurations, this Elite Fairing Package is the foundation of the loudest and most accurate front-stage sound in the AHB lineup.

KEY FEATURES

• Elite Component Compression Horn tweeters with 6.5” midbass Fairing Speakers

  Maximum projection, wide dispersion, and crystal-clear highs—even at highway speeds.

• DSP-Optimized Tuning

  Pre-engineered EQ maps designed for Harley fairings and saddlebags.

• Ultimate Wiring Package

  Dual 8ga amp power kit, fairing harness, bag harness, and expansion leads.

• Plug-and-Play Installation

  No cutting or splicing of the stock harnesses.

• Upgrade-Ready Platform

  Supports future additions such as Elite Tour Pack or Ultimate Full System expansions.

BENEFITS

• Unmatched loudness and clarity — the most powerful system AHB offers.
• Professional-grade DSP tuning ensures perfect audio detail at any speed.
• Full coverage front and rear for a balanced, high-impact soundstage.
• Future-proof architecture built to expand into AHB’s Ultimate systems.
• High-efficiency design that maximizes performance with minimal distortion.
• Road-tested reliability engineered specifically for Harley touring conditions.

RZ75H:
Impedance 4 Ohms
RE 3.95 Ohms
FS 1571 Hz
QMS 6.129
QES 2.192
QTS 1.614
L @ 10Khz .01128 Mh
Sens 107 db

R65:
Power Handling - Continuous - 150Wrms
Power Handling - Peak - 400Wpeak
Impedance - 4Ω
Frequency Response - 100Hz to 10kHz
Magnet Neodymium
Cone Water repellent pressed paper

RZA500.2:
Peak Power: 650 Watts
RMS Power:
2 x 275W @ 2 Ohms
2 x 150W @ 4 Ohms
1 x 550W @ 4 Ohms (bridged mode)
Frequency Response: 20 Hz–25 kHz
Crossover Range: 40 Hz–400 Hz (12 dB slope)
Signal Input Range: 0.41V–10V (balanced high/low level)
Efficiency: 87% at full power
Dimensions:
Housing size: 7.125 x 4.125 x 1.5625"
With Mounting bracket: 8.0 x 4.125 x 1.5625"
