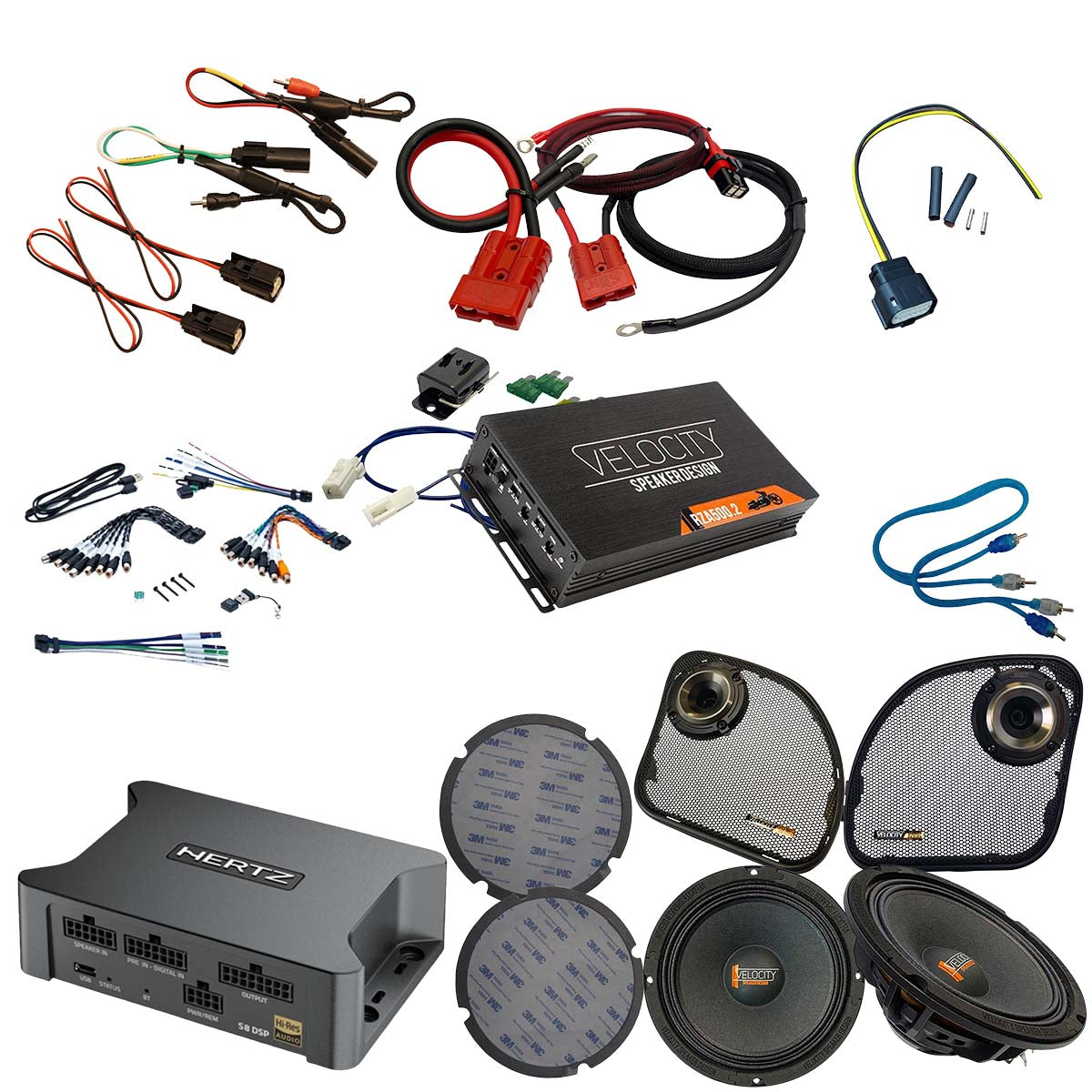

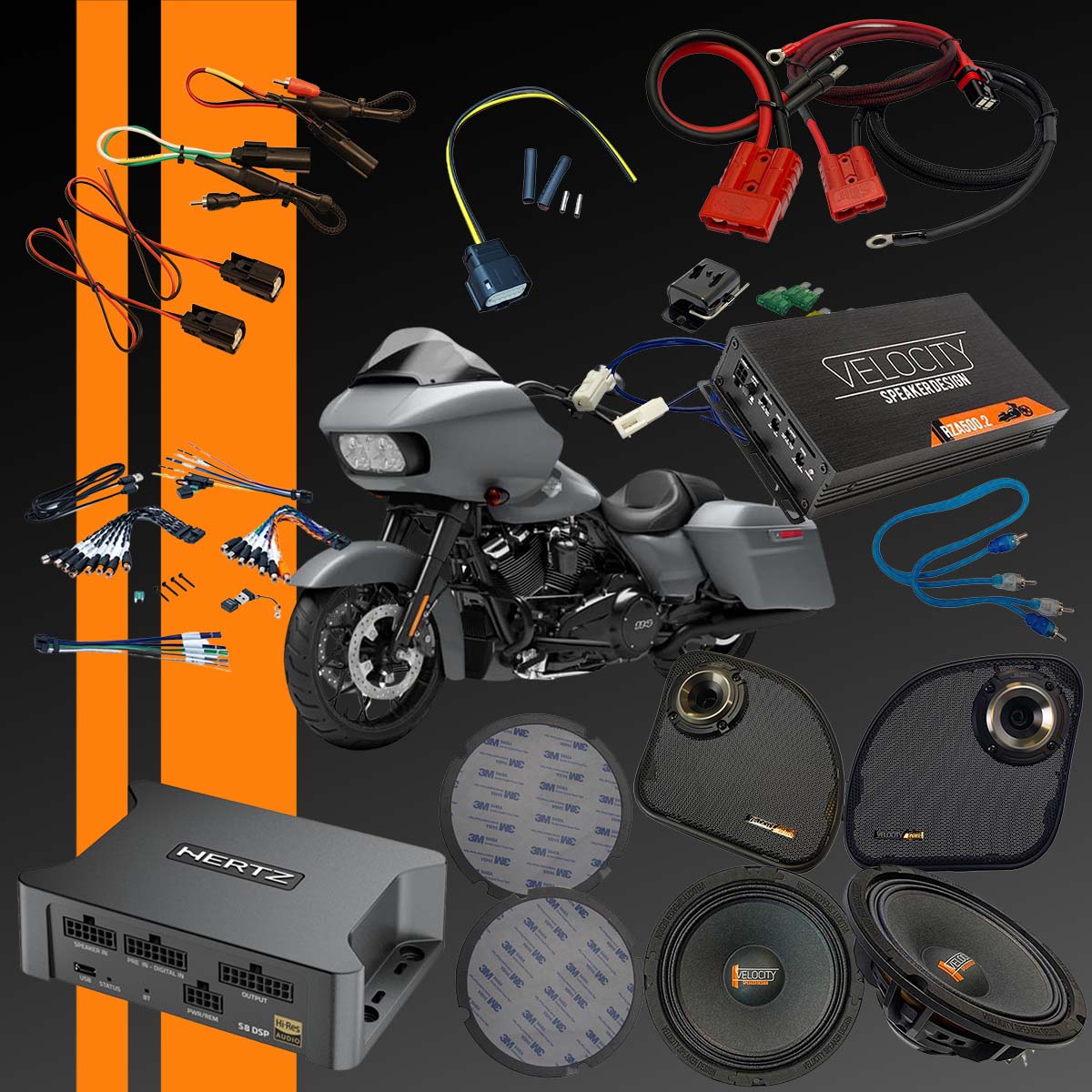

Velocity OverDrive Fairing Package 2015-2023 Road Glide AHB-FP-15-ELT-RG

The AHB-FP-15-ELT-RG Elite Fairing Package is a high-performing front audio upgrade available for 2015-2023 Harley-Davidson Road Glide models. Engineered for riders who demand the loudest, cleanest, and most dynamic front-stage audio, this Elite system combines horn-loaded compression technology, high-power midbass drivers, and an advanced DSP amplifier designed specifically for Harley touring platforms.

This kit delivers exceptional output even at highway speeds, providing crystal-clear highs and powerful mid-range response without distortion. With true plug-and-play wiring, OEM-fit fairing components, and precision-tuned EQ profiles, installation is clean, fast, and CANBUS-safe. Whether you're running a full AHB system or pairing with Elite bag or Tour Pack upgrades, this front package sets the stage for best-in-class motorcycle audio performance.

KEY FEATURES

• Elite Horn + Midbass Combo (CoaxHorn)

  High-efficiency horn tweeters paired with elite-grade midbass speakers for extreme clarity and power.

• DSP-Controlled Amplifier

  Pre-tuned for Road Glide fairing acoustics to deliver maximum performance with zero guesswork.

• True Plug-and-Play Wiring

  No cutting, splicing, or CANBUS interference — fully compatible with 2015 Road Glide OEM harnesses.

• Highway-Ready Output

  Purpose-built to overcome wind, road noise, and helmet acoustics.

• Road Glide-Specific Fairing Grilles

  Optimized airflow and structural support for horn-loaded speakers.

• Upgrade-Friendly Architecture

  Designed to seamlessly expand into Elite bag and Ultimate full systems.

BENEFITS

• Crystal-clear sound at any speed — no distortion, even at full volume.
• Professional-grade tuning right out of the box with DSP-optimized presets.
• Maximum efficiency from horn-loaded compression drivers and elite midbass.
• No dealer guesswork — wiring and fitment are fully plug-n-play.
• Scalable system design — start with the fairing and expand to bags, tour pack, or Ultimate.
• Elite performance tier that outperforms most competing Stage 3 and Stage 4 offerings.

RZ75H:
Impedance 4 Ohms
RE 3.95 Ohms
FS 1571 Hz
QMS 6.129
QES 2.192
QTS 1.614
L @ 10Khz .01128 Mh
Sens 107 db

R65:
Power Handling - Continuous - 150Wrms
Power Handling - Peak - 400Wpeak
Impedance - 4Ω
Frequency Response - 100Hz to 10kHz
Magnet Neodymium
Cone Water repellent pressed paper

RZA500.2:
Peak Power: 650 Watts
RMS Power:
2 x 275W @ 2 Ohms
2 x 150W @ 4 Ohms
1 x 550W @ 4 Ohms (bridged mode)
Frequency Response: 20 Hz–25 kHz
Crossover Range: 40 Hz–400 Hz (12 dB slope)
Signal Input Range: 0.41V–10V (balanced high/low level)
Efficiency: 87% at full power
Dimensions:
Housing size: 7.125 x 4.125 x 1.5625"
With Mounting bracket: 8.0 x 4.125 x 1.5625"
