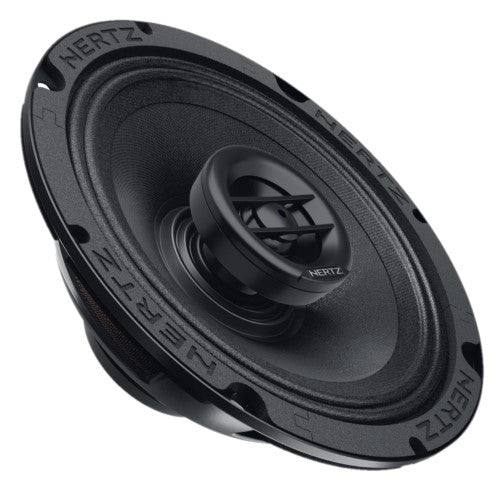

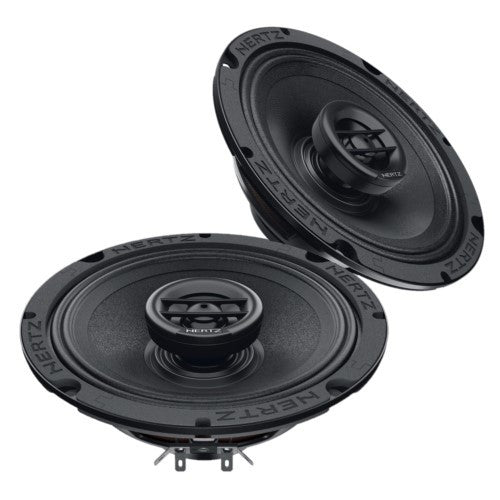

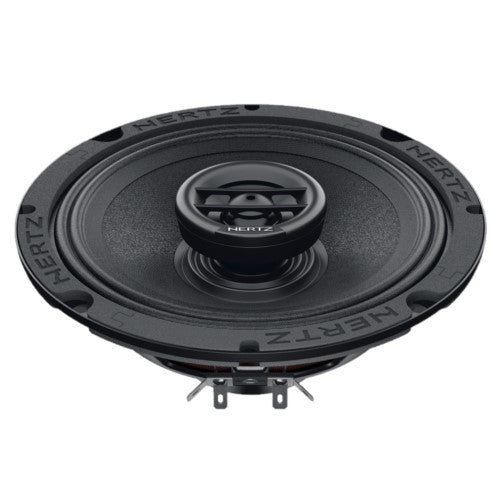

Hertz SX 200 NEO High SPL Coax Speaker Set for Harley

Totally new NEO SPL coaxial SX 200 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 200 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.

↓↓↓ See below for more Info, Features, Specs and Warranty ↓↓↓

Technical Specs:

Component SPL COAXIAL
Size mm (in.) 200 (8)
Power Handling - Continuous W 130
Power Handling - Peak W 260
Impedance Ohm 4
Depth mm (in.) 82,8 (3.26)
Tweeter diaphragm mm (in.) PEI
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Frequency Response Hz 100 ÷ 20k
Woofer Magnet size D x d x h mm (in.) 80 x 50 x 6 (3.15 x 1.97 x 0.24)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 1,32 (2.91)
Woofer Magnet Special Neodymium N38 H
Tweeter Magnet Special Neodymium N38 H
Cone Water repellent pressed paper

Electro-acoustic Specs:

D mm 168
Xmax mm 2,7
Re Ohm 3,2
Fs Hz 120
Le mH 0,06
Vas I 8,1
Mms g 19,9
Cms mm/N 0,12
BL T*m 8,8
Qts 0,52
Qes 0,55
Qms 7,4
Spl dB 100
