Made for the new Skyline Harley Lids, Hertz SX690H Neo Waterproof 6x9 Speakers

** Made especially for 2023 1/2 and Up Harley Touring Bagger saddlebag speaker lids. (No speaker adapters necessary!) **

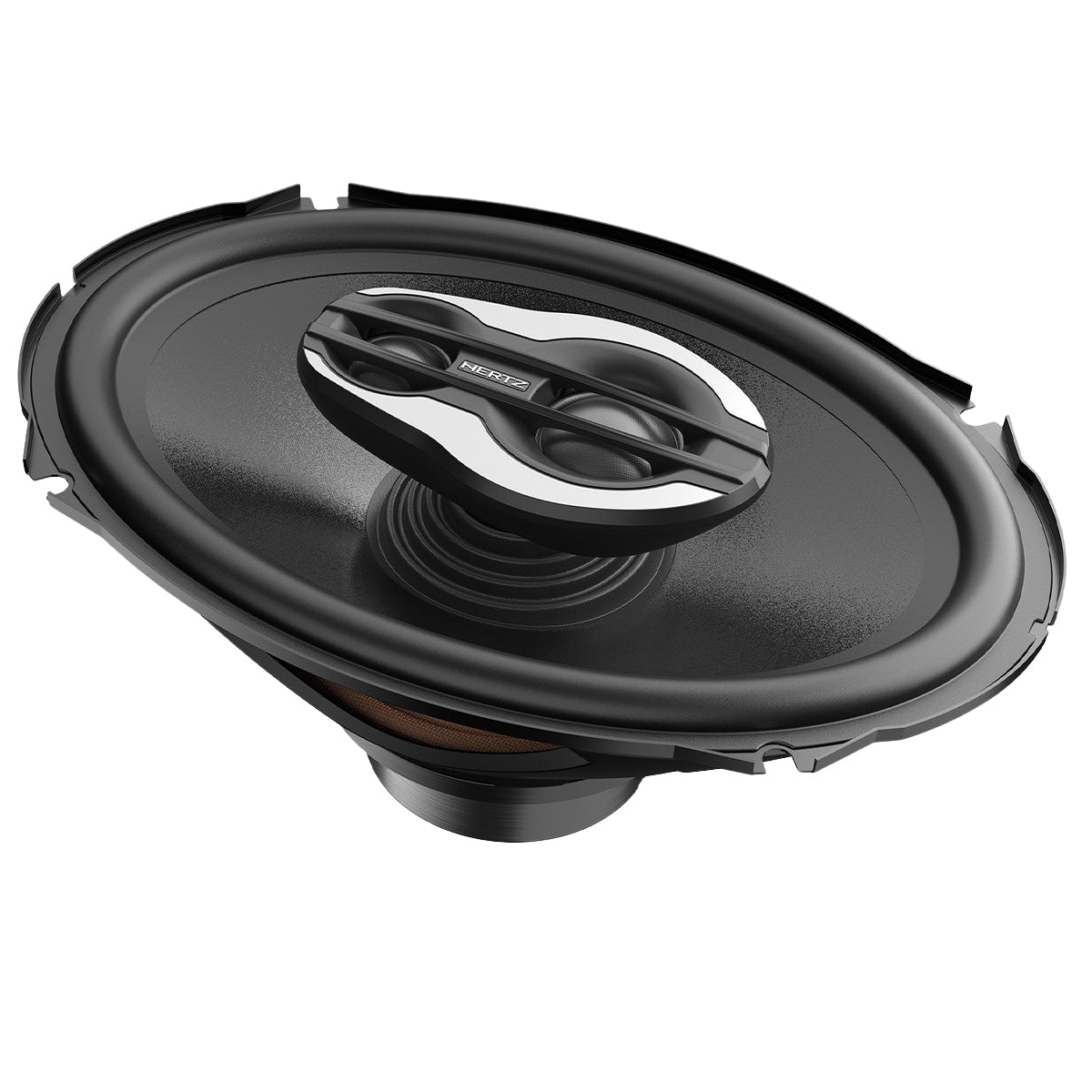

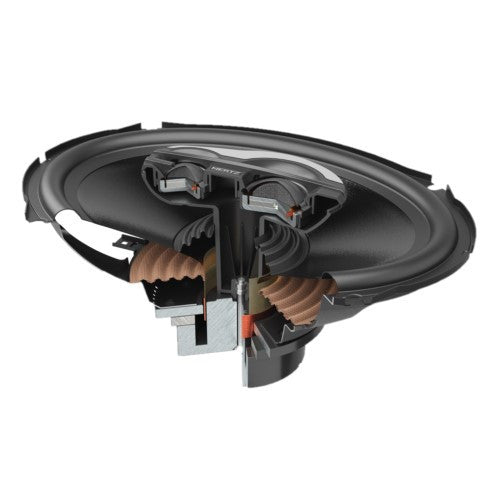

SX 690 H NEO coaxial for Harley is a powerhouse featuring a Hi-SPL Mid-Hi unit with a 1.4” dome tweeter and a 1” dome super tweeter, complete with a resettable solid-state protection circuit. The cone is crafted from nature-proof, high-stiffness pressed paper with innovative water/humidity resistance and anti-UV treatments. Its double-layer copper voice coil, wound on a polyimide former, ensures unparalleled power handling. The new motor units are built with special Neodymium N38 H to deliver minimal bulk and maximized performance.

↓↓↓ See below for more Info, Features, Specs and Warranty ↓↓↓

Technical Specs:

Component SPL COAXIAL
Size mm (in.) in. 6 x 9
Power Handling - Continuous W 130
Power Handling - Peak W 260
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Frequency Response Hz 65 ÷ 24k
Woofer Magnet size D x d x h mm (in.) 110 x 45 x 20 (4.33 x 1.77 x 0.79)
Tweeter Magnet size D x h mm (in.) 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.) 1,69 (3.73)
Woofer Magnet Special Neodymium N38 H
Tweeter Magnet Special Neodymium N38 H
Cone Water repellent pressed paper
Dome Tetolon

Electro-acoustic Specs:

D mm 169
Xmax mm 5,5
Re Ohm 3
Fs Hz 65
Le mH 0,4
Vas I 11,29
Mms g 36,1
Cms mm/N 0,16
BL T*m 7,665
Qts 0,62
Qes 0,78
Qms 2,9
Spl dB 94
