Battery Tender 1000 Amp Jump Starter and Power Bank Breakdown

Battery Tender 1000 Amp Jump Starter Technical Overview and In-Box Contents

The Battery Tender 1000 Amp Jump Starter (model 030-1011-WH) is a compact, portable lithium jump pack and mobile power station designed to jump start 12-volt gasoline engines up to V8 configurations and diesel engines up to 3.0 liters. Equipped with an 8,000mAh internal battery, it delivers 1,000 peak amps and 400 continuous starting amps while offering integrated 10W Qi wireless charging, fast USB output, and smart spark-proof alligator clips. Certified to rigorous safety standards including UL 2743, CEC, DOE, FCC, ICES-001, and UN38.3, official operating instructions and regulatory guidelines can be referenced directly in the Battery Tender 1000Amp Vehicle Jump Starter Manual.

Key Hardware Specs and 8000mAh Internal Lithium Capacity

Beneath its rugged, compact exterior, the unit houses an 8,000mAh lithium-ion battery cell configured to deliver a burst of 1,000 peak amps alongside a sustained starting current of 400 amps. That output delivers sufficient cranking energy to turn over stubborn engines while maintaining the reserve capacity needed to provide up to 30 jump starts on a single charge under optimal operating conditions.

Weighing just 0.8 lbs with physical dimensions measuring 1.25" x 3.5" x 6.375", the power-to-weight ratio is impressive. Whether you are running a standard factory setup or paired with a dedicated, durable lithium battery in your custom build, keeping high-density backup cranking power within arm's reach prevents minor electrical issues from leaving you stranded. To keep the internal cells in prime condition, the manufacturer recommends a simple quarterly top-off charge every three months.

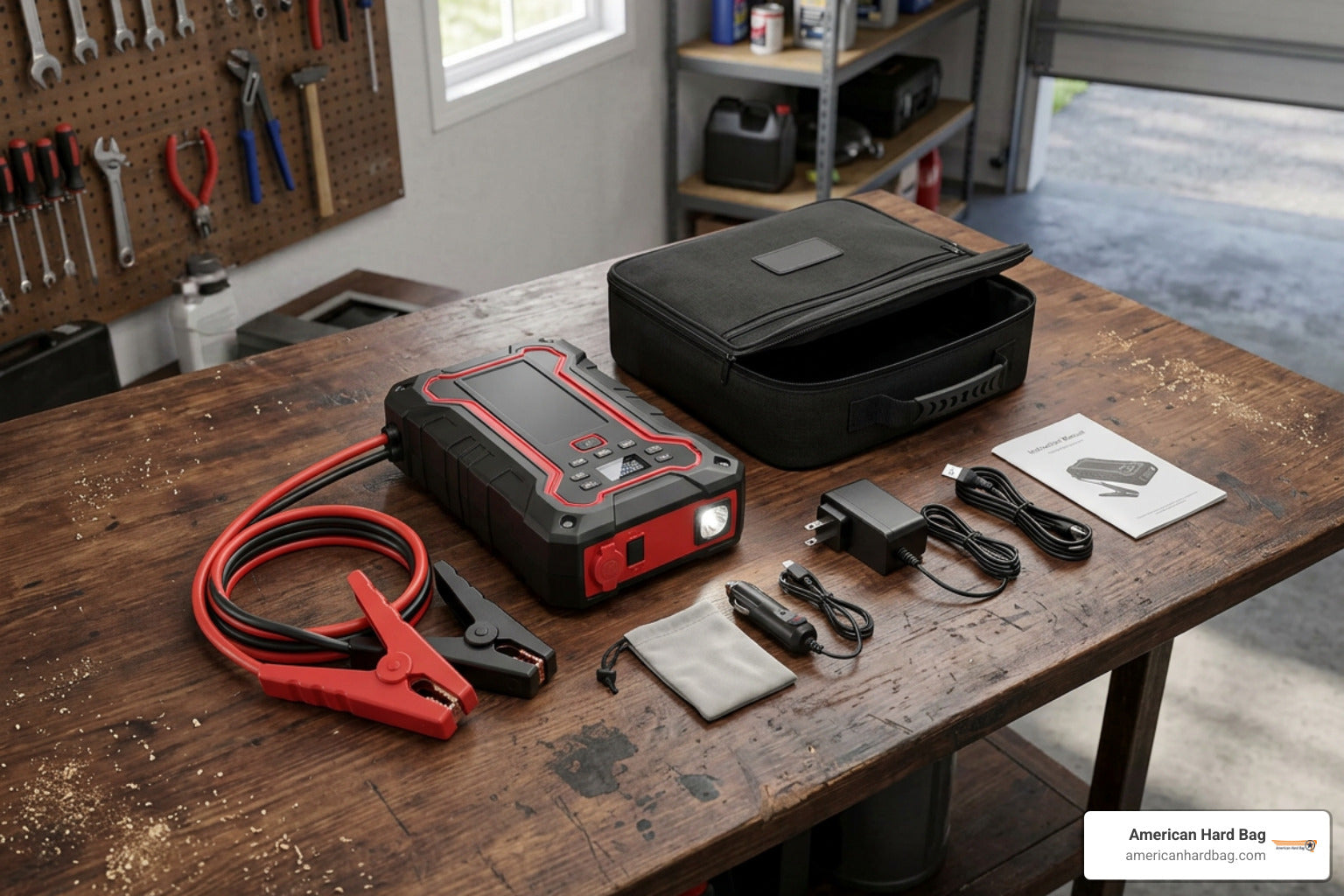

What Comes in the Box with the Battery Tender 1000 Amp Jump Starter

Unboxing model 030-1011-WH gives you everything required for emergency roadside deployment and everyday personal device charging right out of the package:

• 1000A Lithium Jump Starter & Power Bank: The main power unit featuring top-mounted Qi wireless charging and integrated LED lighting.
• Smart Alligator Clips: Heavy-duty, spark-proof jumper clamps equipped with built-in electronic diagnostic indicators and an audible warning buzzer.
• USB-A to USB-C Charging Cable: A multi-purpose charging cable used to recharge the internal 8,000mAh pack or fast-charge compatible mobile devices.
• Microfiber Storage Pouch: A protective carrying bag that keeps dirt, grit, and moisture away from connection ports when stowed in toolboxes or saddlebags.
• User Manual & Quick Start Documentation: Detailed operating instructions, safety precautions, and warranty information.

Performance, Safety Protections, and Cold Weather Cranking

The real test of any portable jump pack is how it performs when you are stuck on the shoulder in less-than-ideal conditions. With 1,000 peak amps on tap, this unit is rated to start 12-volt gasoline engines up to V8 configurations and select diesel engines up to 3.0 liters. That covers standard passenger cars, crossovers, light pickup trucks, boats, ATVs, and high-displacement touring motorcycles.

Smart Alligator Clips and Built-In Safety Systems

Connecting high-output lithium cells to a vehicle battery requires robust safety engineering. The Battery Tender 1000A utilizes intelligent alligator clips that isolate current until a safe, correct connection is established. This design prevents high-voltage spikes from damaging sensitive vehicle engine control units (ECUs) and aftermarket electronics.

The diagnostic module on the smart clamps uses visual and audio feedback to keep you informed before you turn the key:

• Solid Green LED: Indicates correct polarity, solid terminal contact, and safe voltage levels. The system is armed and ready for cranking.
• Amber LED with Audible Buzzer: Signals an active fault condition such as reverse polarity connection, short circuit, deep discharge under-voltage, or internal overheat protection. Current flow is automatically cut off.
• Spark-Proof Hardware: Prevents accidental electrical arcing when clamps make contact with vehicle metal or touch each other during handling.

Cold Weather Cranking Performance and Operating Limits

Freezing temperatures are notoriously tough on batteries. Frigid weather thickens engine oil, creating higher mechanical resistance during ignition while simultaneously slowing down chemical reactions inside vehicle batteries.

The Battery Tender 1000A has an official operating temperature range of 32°F to 104°F (0°C to 40°C). While lithium cells naturally experience temporary voltage drops when exposed to sub-freezing winter weather, lithium chemistry consistently holds its baseline voltage better than aged lead-acid packs.

If your vehicle is parked in sub-freezing temperatures and is running a heavy-duty starting setup like a reliable AGM battery, keeping your jump starter inside a heated vehicle cabin or warm jacket pocket for 10 to 15 minutes before connecting will warm the internal lithium cells and maximize instant cranking amperage.

Step-by-Step Vehicle Jump Starting and Power Bank Operation

Operating the jump starter is straightforward, but following the correct sequence protects your vehicle's electrical system, starter motor, and internal battery cells from thermal stress.

Safe Jump Starting Sequence on Cars and Powersports

Before connecting, confirm that the jump pack has at least a 50% charge (minimum 2 to 3 illuminated status LEDs).

1. Safety Preparation: Turn off the vehicle ignition, headlights, air conditioning, and any high-draw accessories.
2. Connect the Clamps to the Unit: Insert the blue smart clamp connector plug firmly into the jump-starting port on the power pack.
3. Attach Positive (Red): Connect the red positive alligator clamp securely to the positive (+) terminal of the dead vehicle battery.
4. Attach Ground/Negative (Black): Connect the black negative clamp to an unpainted metal chassis ground bolt or engine bracket away from the battery. Alternatively, attach it directly to the negative (-) battery terminal if a chassis ground is inaccessible.
5. Verify the Green Indicator: Look at the smart module. Once the LED turns solid green, wait 5 to 10 seconds for voltage stabilization.
6. Ignition Attempt: Crank the vehicle engine. Limit the crank attempt to a maximum of 5 seconds for cars, or 3 to 5 seconds for powersports vehicles.
7. Rest Between Cycles: If the vehicle does not fire on the first attempt, pause and wait at least 30 seconds to allow the starter motor and lithium cells to cool before trying again. Never exceed three consecutive start attempts.
8. Disconnect in Reverse Order: As soon as the engine starts, remove the black negative clamp first, then disconnect the red positive clamp, and finally unplug the cable assembly from the jump pack.

For comprehensive garage maintenance and complete battery upkeep between road trips, exploring a broader selection of batteries & chargers ensures you have the right tools for both active riding and long-term seasonal storage.

Qi Wireless and USB Fast-Charging Power Bank Functions

Beyond roadside recovery, the 8,000mAh internal capacity makes this unit a practical daily power hub. The top surface features an integrated 10-Watt Qi wireless charging pad—simply place your compatible smartphone on the pad and tap the power button to start charging without tangling extra wires.

For wired electronics, the unit provides:

• Standard USB-A Port (5V / 2.4A): Rapid charging for standard mobile devices, action cameras, and communication headsets.
• USB Type-C In/Out Port (5V / 3A): Fast bidirectional power transfer to quickly top off modern smartphones or recharge the jump pack itself.
• Ultra-Bright Emergency LED Flashlight: Includes multiple operating modes—continuous beam, rapid strobe, and emergency SOS pulse pattern for nighttime roadside safety.

Lineup Breakdown and Alternative Power Options

Understanding how the 1000A model fits within the broader ecosystem of emergency starters and shop chargers helps you pick the exact tool for your engine displacement and storage needs.

Model / Feature	Peak Amps	Battery Capacity	Max Gas Engine	Max Diesel Engine	Primary Form Factor & Utility
Jump N Start 600A	600A	6,400mAh	Up to V6	Up to 3.0L	Glove-box compact carry pack
BT 1000A (030-1011-WH)	1000A	8,000mAh	Up to V8	Up to 3.0L	10W Qi Wireless + USB fast charging
Charge N Start 1100	1000A	Multi-cell	Up to V6	Up to 3.0L	2-in-1: 1A Smart Charger + 1000A Jump Pack
Jump N Start 1500A	1500A	12,000mAh	Up to 7.0L V8	Up to 5.5L - 7.0L	Heavy-duty truck & RV starting
Jump N Start 2000A	2000A	16,000mAh	Up to 8.0L Gas	Up to 6.5L - 8.0L	High-compression engines & large diesels
2000A Power Station	2000A	16,000mAh	Up to V8 Gas	Up to 8.0L Diesel	Integrated 100W 120V AC wall outlet

Battery Tender 1000 Amp Jump Starter vs Higher Capacity Models

Stepping up to larger models like the Jump N Start 1500 Amp Lithium Jump Starter | Battery Tender® or the Jump N Start 2000 Amp Lithium Jump Starter | Battery Tender® increases your battery capacity to 12,000mAh and 16,000mAh respectively. Those units are built for high-displacement turbo diesels, commercial work trucks, and marine engines. If you need off-grid AC wall power on remote work sites, the Jump N Start 2000 Amp Power Station 100W | Battery Tender® adds an integrated 100-watt inverter.

However, for everyday passenger cars, crossovers, motorcycles, and standard V8s, the 1000A unit hits the sweet spot of compact physical size, low weight (0.8 lbs vs up to 3.9 lbs on heavier models), and accessible pricing. You can browse the complete product catalog through All Jump Starters | Battery Tender®.

Standalone Jump Packs vs Multi-Function Charger Combos

It helps to know the difference between an emergency jump starter and a continuous battery maintainer:

• Standalone Jump Packs (Model 030-1011-WH): Designed for portable, battery-powered rescue when stranded away from home. They dump high amperage instantly to crank the engine, but they do not charge or maintain stored batteries over winter.
• Dual-Role Maintainer & Jump Combos: Units like the Charge N Start 1100 — 1 Amp Charger & 1000 Amp Jump Starter | Battery Tender® combine a 1A smart wall charger with an onboard 1000A lithium jump pack. They run 4-stage Infinite Sequential Monitoring (ISM) to prevent plate sulfation during storage while keeping an internal emergency jump pack topped off on the garage wall.

For stationary garage maintenance where you need continuous float charging, pairing your setup with a dedicated multi-stage battery charger or a specialized smart lithium battery charger prevents seasonal battery degradation before it ever starts.

Frequently Asked Questions about Battery Tender Jump Starters

How do I know when the jump starter needs recharging?

The top control panel features a four-stage LED battery indicator. Press the power button once to check remaining reserve capacity:

• 4 LEDs: 75% to 100% charged
• 3 LEDs: 50% to 75% charged
• 2 LEDs: 25% to 50% charged
• 1 LED: Below 25% capacity (needs immediate recharge)

You should always have at least 50% capacity (minimum 2 solid LEDs) before attempting to jump start an engine. The unit recharges via any standard USB wall adapter using the included USB Type-C cable. For optimal readiness, top off the unit every three months.

Is it safe if I connect the cables to the wrong terminal?

Yes. The smart alligator clip module has built-in reverse polarity detection. If you mistakenly clamp the positive red lead to the negative terminal and the black lead to positive, the unit will not pass current. The module will light an amber fault LED and sound a continuous buzzer alarm. Simply unclamp the leads, connect them to the correct terminals, and wait for the solid green LED before starting.

What is the warranty on the 1000 Amp unit?

The Battery Tender 1000A Jump Starter (030-1011-WH) is covered by a 1-year limited manufacturer warranty against material defects and craftsmanship issues under normal operating conditions. Warranty claims and technical assistance are handled directly through the Deltran / Battery Tender customer support department.

Conclusion

The Battery Tender 1000 Amp Jump Starter delivers a balanced mix of emergency cranking power, compact portability, and practical everyday charging features. With 1,000 peak amps capable of starting gasoline engines up to V8 configurations and 3.0L diesels, built-in spark-proof protections, and convenient 10W Qi wireless charging, it is an easy upgrade for your vehicle's emergency kit.
