Key Benefits of Choosing a Hertz Active Subwoofer
A Hertz active subwoofer delivers big bass in a small package because it combines a high-efficiency Class D amplifier with He-Li (High Efficiency/Low Impedance) technology and a purpose-built enclosure. The internal 440-watt peak (220-watt RMS continuous) amplifier drives an ultra-low 0.4-ohm load directly without a bulky, power-hungry DC-DC switching booster, reaching roughly 90% operating efficiency. Meanwhile, the enclosure engineering—whether dual passive radiators in the DBA 201 or a super-flat sealed cabinet in the DBA 201F—extracts maximum low-frequency response from minimal physical volume.
When upgrading a modern audio system, space and electrical efficiency are almost always your biggest hurdles. Traditional aftermarket bass setups require matching a raw driver to a custom enclosure, routing thick power cables across the chassis, mounting an outboard amplifier, and tuning external line-output converters. A powered solution eliminates these headaches by integrating a purpose-built amplifier directly into a factory-tuned enclosure.
This efficiency keeps electrical demands remarkably low. With a maximum current draw of only 15 amps at full tilt, an idling current of just 260 mA, and a standby draw of 1 mA, these units won't punish your charging system. They also feature a broad operating voltage window ranging from 6.5V to 18V. This wide range prevents shutdown during the aggressive start-stop cycles or electrical fluctuations common in modern charging systems and electric vehicles (EVs).
For audio enthusiasts exploring our comprehensive Subwoofers Collection, self-powered designs like the Dieci DBA series and the Hertz CBA 250 active subwoofer box offer an exceptional balance between high acoustic output and minimal electrical load.
Hertz Active Subwoofer Enclosure Engineering: Passive Radiators vs. Super-Flat Sealed
A compact subwoofer is only as good as the enclosure physics behind it. Hertz relies heavily on advanced Finite Element Method (FEM) simulation modeling to extract maximum low-frequency response from minimal physical volume.
The standard DBA 201 active enclosure utilizes a heavy-duty, solid MDF construction paired with an active 8-inch driver and dual passive radiators. Instead of cutting a port tube—which can introduce audible air turbulence (chuffing) and requires significant internal enclosure volume—the two passive cones act as an acoustic suspension system. They resonate in tandem with the active cone, effectively tripling the radiating surface area and yielding substantial low-end extension that mimics a much larger vented box.
In contrast, the Hertz DBA 201 F super shallow active subwoofer utilizes a super-flat sealed enclosure crafted from high-rigidity molded plastic reinforced with internal structural ribs. A sealed acoustic suspension enclosure provides exceptional transient control and tight, accurate bass notes while eliminating cabinet resonances. This shallow profile allows the unit to slide under low-clearance seats without sacrificing mechanical reliability.
Fine-Tuning Your Hertz Active Subwoofer: Controls and On-Board DSP Features
Tuning a subwoofer to blend seamlessly with existing mid-bass drivers and cabin acoustics is crucial for realistic sound reproduction. Both the DBA 201 and DBA 201F come equipped with a comprehensive analog control panel:
- 24 dB/Octave Low-Pass Crossover: Featuring an adjustable cutoff corner from 50 Hz to 150 Hz, this steep 4th-order slope aggressively cuts out midrange frequencies so the subwoofer only plays the lowest octaves without muddying vocal clarity.
- Adjustable Bass Boost: Offers up to +6 dB of boost centered at 45 Hz, letting you dial in extra punch for highway cruising or open-air environments.
- Variable Phase Inverter (0–180°): Flips the acoustic polarity of the driver to match the acoustic wave timing of your front soundstage, eliminating dead spots caused by phase cancellation.
- Dedicated Subsonic Filter: Set at 15 Hz with a 24 dB/Octave slope, this protects the woofer cone from over-excursion caused by wasted, sub-audible frequencies.
- Input Sensitivity Matching: Accommodates high-level speaker inputs (1.2V to 30V RMS) and low-level RCA inputs (0.2V to 5V RMS) to prevent pre-amplifier clipping.
Hertz DBA 201 vs. DBA 201F: Detailed Model Comparison
Choosing between these two units comes down to the physical space you have available and the specific sonic texture you prefer.
| Specification | Hertz DBA 201 | Hertz DBA 201F |
|---|---|---|
| Driver Size | 8 in. (200 mm) Active + Dual 8 in. Passive | 8 in. (200 mm) Active Driver |
| Continuous Power (RMS) | 220 Watts | 220 Watts |
| Peak Power Output | 440 Watts | 440 Watts |
| Enclosure Design | Double Passive Radiator | Super-Flat Sealed |
| Cabinet Construction | Solid MDF Wood | Rigid Reinforced ABS |
| Frequency Response | 32 Hz – 400 Hz | 32 Hz – 400 Hz |
| Dimensions (L x W x H) | 291 x 263 x 263 mm (11.46 x 10.35 x 10.35 in.) | 345 x 245 x 79 mm (13.58 x 9.64 x 3.11 in.) |
| Total Weight | Approx. 9.0 kg (19.8 lbs) | Approx. 4.3 kg (9.5 lbs) |
| Maximum Current Draw | 15 Amps | 15 Amps |
| Primary Mounting | Trunk / Cargo Bay / Saddlebags | Under Seats / Behind Panels |
If you are pairing these powered enclosures with broader component packages, check out our catalog of Hertz Related Products to build out a balanced, high-efficiency system.
Hertz DBA 201 Active Subwoofer Box
The DBA 201 is designed for listeners who want full, resonant sub-bass performance without surrendering an entire cargo bay. Because it uses an active 8-inch driver pushed by dual opposing passive radiators, it displaces air equivalent to a much larger single 10- or 12-inch ported box. The solid MDF enclosure damps internal vibrations, making it an excellent choice for SUV hatchbacks, car trunks, or touring compartments where deep, room-filling low end is the goal.
Hertz DBA 201F Super-Flat Under-Seat Subwoofer
The DBA 201F is engineered specifically for micro-spaces. Standing just 79 mm (3.11 inches) tall, this super-flat enclosure slides directly beneath standard passenger or driver seats. Its sealed design delivers punchy, immediate kick-drum impact and articulated basslines, making it ideal for compact commuter cars, single-cab trucks, and discreet custom installs where cargo floor space cannot be compromised.
Vehicle Integration and Installation Options
Connecting an aftermarket subwoofer to modern vehicles used to require complex wiring splices, separate remote wire tapping, and auxiliary line-output converter boxes. Hertz simplifies this entire workflow with intelligent OEM integration features found throughout the Dieci Subwoofers line.
Both the DBA 201 and DBA 201F feature a multi-pin, quick-disconnect Molex terminal plug. Power, ground, remote turn-on, and speaker inputs all feed through this single locking connector. If you ever need to free up trunk room for luggage or track days, you simply unplug the harness and lift the entire enclosure out in seconds—no exposed live wires or loose terminal blocks.
Integration highlights include:
- Universal Input Compatibility: Accepts speaker-level connections up to 30V RMS (handling high-power factory amplified systems) alongside traditional low-level RCA inputs (0.2V to 5V RMS).
- Automatic Remote Turn-On (ART): When using speaker-level inputs, the internal circuit detects the DC offset or audio AC signal from the factory head unit, powering the amplifier on and off automatically without needing a separate 12V remote turn-on lead.

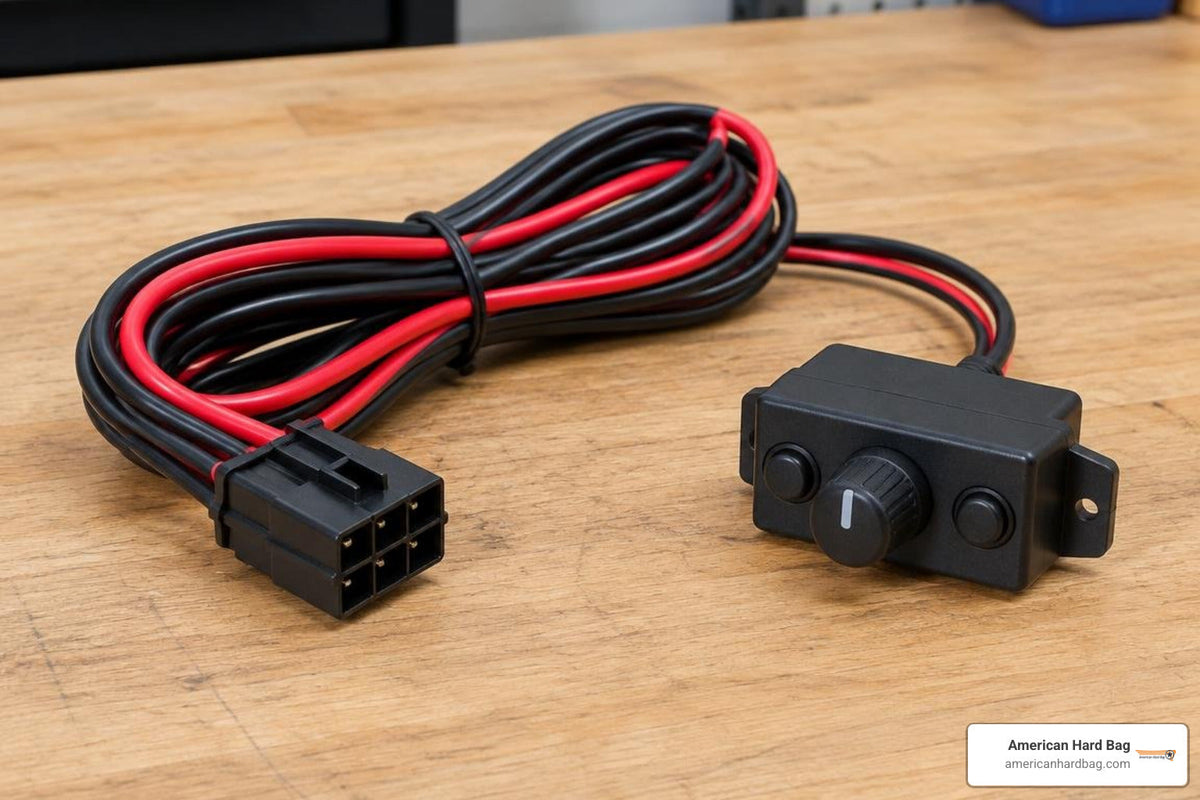

- HRC 01 Remote Level Control: An included wired remote knob allows you to adjust the subwoofer output level on the fly directly from the driver's seat.
Custom and Motorcycle Applications
At American Hard Bag, we specialize in high-output audio engineering for touring platforms, where vibration, harsh weather, and space limits push standard equipment to its limits. While the DBA 201 and 201F active subwoofers are primarily designed for automotive under-seat and cargo installs, their high-efficiency Class D topology and compact footprints highlight the design principles needed for open-road sound.
If you are outfitting a motorcycle with dedicated, weather-resistant bass, dedicated custom kits provide the structural mounting, waterproofing, and acoustic tuning necessary to cut through highway wind noise. For riders looking for high-power, motorcycle-specific bass performance, explore our purpose-built American Hard Bag Modular Bass System with Hertz 10" Subwoofers for '24-Up Bikes.
Frequently Asked Questions About Hertz Active Subwoofers
Can I install a Hertz active subwoofer in an electric vehicle without draining the battery?
Yes. The DBA 201 and DBA 201F feature an operating range of 6.5V to 18V, an idle current draw of only 260 mA, and a standby draw of less than 1 mA. With a maximum current draw capped at 15A, these subwoofers integrate safely into 12V auxiliary DC systems on hybrid and electric vehicles without significantly impacting range or battery health.
How does a passive radiator system differ from a traditional ported subwoofer?
A traditional ported box uses a hollow plastic or wooden tube to tune low frequencies, which requires extra enclosure volume and can generate wind noise (port chuffing) at high volumes. A passive radiator system replaces the port tube with tuned, unpowered speaker cones. This allows the subwoofer to hit deep frequencies in an enclosure that is up to 30–50% smaller, completely free of port turbulence.
Can a Hertz active subwoofer connect directly to a factory OEM head unit?
Yes. Thanks to internal high-level speaker inputs that handle up to 30V RMS, you can tap directly into your factory speaker wiring. The Automatic Remote Turn-On (ART) circuit detects the incoming speaker signal and turns the unit on automatically, so you do not need an external line output converter (LOC) or an aftermarket head unit.
Conclusion
A self-contained Hertz active subwoofer proves that you do not need to fill your trunk with massive enclosures and exposed amplifiers to get authoritative bass. Between the deep acoustic output of the dual-passive-radiator DBA 201 and the slim profile of the under-seat DBA 201F, Hertz offers engineered, high-efficiency low-frequency solutions for nearly any tight vehicle cabin.
