What Is a 6x9 to 6.5 Inch Speaker Adapter — and Do You Need One?
A 6x9 to 6.5 inch speaker adapter is a mounting plate that lets you install a standard round 6.5-inch aftermarket speaker into a factory oval 6x9-inch speaker opening — no cutting, no drilling, no permanent modifications.
Here's the quick answer:
- Factory vehicles (and many motorcycles) use oval 6x9-inch speaker openings
- Most premium aftermarket speakers come in a round 6.5-inch format
- An adapter plate bridges that size gap using the factory bolt pattern
- Installation is typically bolt-on and reversible
- You get access to a much wider range of high-quality aftermarket speakers
The problem is simple: you want better sound, but the speakers you want don't fit the hole you have. A cheap, flimsy adapter can flex under vibration, kill your bass response, and rattle behind your door panel. The right adapter — made from the right material, with the right dimensions — makes the whole upgrade feel effortless.
At American Hard Bag, we specialize in premium motorcycle audio accessories and have helped countless riders solve exactly this compatibility problem when upgrading their audio systems with a 6x9 to 6.5 inch speaker adapter. We know what works in high-vibration, real-world riding conditions — and what doesn't.
Why Convert from 6x9 Oval to 6.5-Inch Round Speakers?
It might seem counterintuitive at first. Why would you want to replace a larger 6x9-inch oval speaker with a smaller 6.5-inch round speaker? Isn't bigger always better?
In car and motorcycle audio, the shape of your speaker plays a massive role in how it performs. While 6x9 speakers have a larger overall cone area—which is great for moving air and generating low-end bass in budget setups—they suffer from inherent design limitations. Because the cone is oval, it does not move symmetrically. This asymmetrical movement can introduce distortion, especially at high volumes or when reproducing complex mid-range frequencies.
Round 6.5-inch speakers, on the other hand, are the absolute darling of the audiophile world. A round cone moves perfectly symmetrically, resulting in significantly cleaner, more accurate sound reproduction. When you look at high-end component systems, 3-way setups, and audiophile-grade drivers, they are almost exclusively manufactured in round formats (usually 6.5 inches).
By converting your factory 6x9 openings using a high-quality adapter, you unlock several major benefits:
- Superior Soundstage and Clarity: Round speakers offer much better off-axis response and mid-range clarity, which is crucial for hearing vocals and instruments clearly over wind and engine noise.
- Unmatched Product Selection: The market for premium 6.5-inch speakers is massive compared to 6x9s. If you want high-end audio, you will find your best options in the 6.5-inch category.
- Better Power Handling: High-end 6.5-inch speakers often feature robust magnet structures and voice coils designed to handle serious amplifier power without distorting.
Whether you are configuring the perfect Speakers for a Harley Davidson or upgrading your daily driver truck, downsizing the opening size to a round format is often the single best way to achieve true high-fidelity sound.
Choosing the Right 6x9 to 6.5 Inch Speaker Adapter for Your Vehicle
Not all adapter plates are created equal. The material your adapter is made of will directly impact how long it lasts and how good your system sounds. In the harsh environment of a car door or a motorcycle fairing, moisture, temperature swings, and constant road vibrations will quickly destroy subpar materials.
Let’s break down the three most common materials used for speaker adapters today:
| Feature / Material | CNC-Machined HDPE | Injection-Molded ABS | 3D-Printed Plastic (PLA/PETG) |
|---|---|---|---|
| Moisture Resistance | Outstanding (100% Waterproof) | High | Moderate (Filament dependent) |
| Vibration Damping | Excellent (Absorbs resonance) | Moderate (Can flex or rattle) | Low to Moderate |
| Structural Rigidity | Maximum (Will not warp) | Moderate | Variable (Depends on infill) |
| Fit & Finish | Precision Perfect | Good (Often generic fit) | Custom (Requires DIY tuning) |
| Best For | High-end, high-vibration setups | Budget-friendly, standard installs | DIY hobbyists and prototypes |

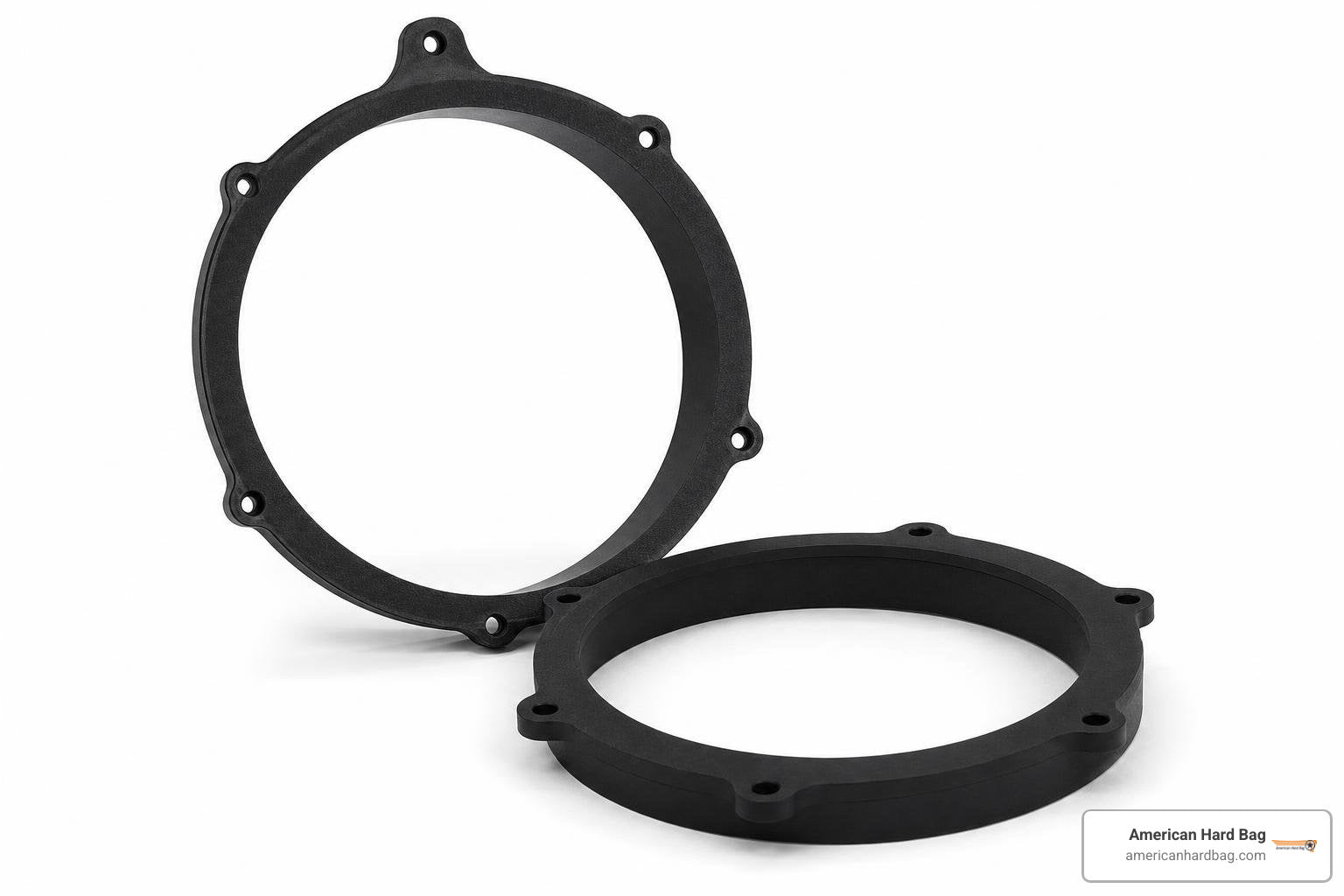

The Case for CNC-Machined HDPE
If you want the absolute best performance, marine-grade, solid-core virgin High-Density Polyethylene (HDPE) is the gold standard. HDPE is incredibly dense, which means it resists vibration and provides an extremely stable mounting platform. Unlike Medium-Density Fiberboard (MDF), which absorbs water and swells up like a sponge inside damp door cavities, HDPE is completely impervious to moisture.
High-quality CNC-machined HDPE adapters are designed to prevent door panel flexing, keeping your speaker perfectly decoupled from the metal or fiberglass mounting surface. This structural stability ensures that all of the speaker's energy is converted into clean sound rather than vibrating the adapter plate itself.
ABS and Budget Alternatives
On the budget end of the spectrum, you will find injection-molded ABS plastic adapters. Popular options like the Scosche SA69 adapter (typically priced around $13.99) are highly versatile, fitting over 200 vehicle models from Acura to Volkswagen. There are also multi-fit options like the Absolute SPBA6x9-2 adapter (listed around $24.99), which is compatible with over 150 Ford, Lincoln, Mercury, and Mazda models, allowing you to downsize a 6x9 or 6x8 opening to fit 5.25", 6", or 6.5" speakers.
Additionally, companies like Fox Acoustics offer durable 1/4-inch thick plastic adapter plates for around €21.07, featuring a standard 5.625-inch cutout. While these ABS and thin plastic options are cost-effective and get the job done for basic upgrades, they lack the mass and vibration-damping properties of premium CNC-machined HDPE, meaning they can flex when paired with high-power aftermarket speakers.
Key Specifications of a 6x9 to 6.5 Inch Speaker Adapter
Before clicking "buy" on any adapter plate, you must verify that the physical dimensions of the adapter match both your vehicle's factory opening and your new aftermarket speakers.
Keep these three critical specifications in mind:
- Cutout Diameter: This is the inner hole where the speaker basket sits. Standard 6.5-inch speakers typically require a cutout diameter of 5.625 inches (approx. 142mm). However, many high-end or "oversized" 6.5-inch speakers have larger baskets that may require you to slightly shave or sand down the inner lip of the adapter (sometimes by 1/8 inch) to get a flush fit.
- Speaker Flange Size: The outer diameter of your new speaker's mounting flange must fit within the outer footprint of the adapter plate (usually within 165mm). If your speaker's flange is too wide, it won't sit flat.
- Mounting Depth & Clearance: Converting from a 6x9 to a 6.5-inch speaker can alter how deep the speaker sits in your door or fairing. If the adapter is too thin, the speaker's magnet might hit your window glass or internal brackets. If it is too thick, the speaker surround might press against the factory door panel or speaker grille. For tight spaces, utilizing specialized enclosures or Sealed Backs for 6x9s IP-6x9-V Sealed can help manage airspace and protect the speaker.
DIY 3D-Printed Alternatives vs. Commercial Adapters
For the makers and DIY enthusiasts out there, 3D printing your own speaker adapters has become a highly popular alternative. On community platforms like Printables.com, custom designs are widely shared:
- A popular 3D-printed 6x9 to 6.5 adapter model by designer Sicklyboy has been downloaded over 2,150 times, proving the high demand for custom DIY solutions.
- Another highly versatile 3D-printable 6x9 to 6.5 adapter model by designer satukoro includes four different versions (featuring 1-inch spacers, 1/2-inch spacers, and open-frame variants) to help installers clear tight mounting depth constraints.
However, if you decide to go the 3D-printed route, you must be careful with your filament selection. Standard PLA filament will warp, sag, and melt inside a hot car door or under direct sunlight on a motorcycle fairing during the summer. Instead, you must use weather-resistant and heat-resistant filaments like PETG, ASA, or ABS.
Additionally, printing these large parts requires a minimum print bed size of 220mm x 220mm (often requiring you to place the model diagonally on the bed to fit) and can take upwards of 15 hours of print time. For structural strength to hold a heavy speaker magnet, you should print with at least 50% infill and use a raft to prevent warping. While 3D printing is fantastic for custom prototyping, commercial CNC-machined HDPE remains the most reliable, hassle-free option for long-term durability.
How to Install a 6x9 to 6.5 Speaker Adapter
Installing a 6x9 to 6.5 inch speaker adapter is a straightforward DIY project that can easily be completed in an afternoon with basic hand tools.
Recommended Tools & Materials:
- Panel removal tool (to safely remove door panels or fairings)
- Phillips head screwdriver and socket set
- High-quality closed-cell foam gasket tape (with 3M adhesive)
- Wire strippers/crimpers (or plug-and-play wiring adapters)
- Rubbing alcohol (to clean mounting surfaces)
Before you begin, an airtight seal is the secret to great mid-bass. Any air gaps between the front of the speaker cone and the rear of the speaker cone will cause "acoustic cancellation," which completely destroys your bass response. Always use foam gasket tape to seal the adapter plate to the mounting surface, and another layer to seal the speaker to the adapter plate.
Additionally, make sure you plan your wiring. Rather than cutting your factory wiring harness, we highly recommend using vehicle-specific plug-and-play wiring adapters. If you are working on a custom motorcycle setup, keeping your wiring clean and properly routed is essential—check out our guide on Harley Speaker Wiring for professional-grade wiring tips.

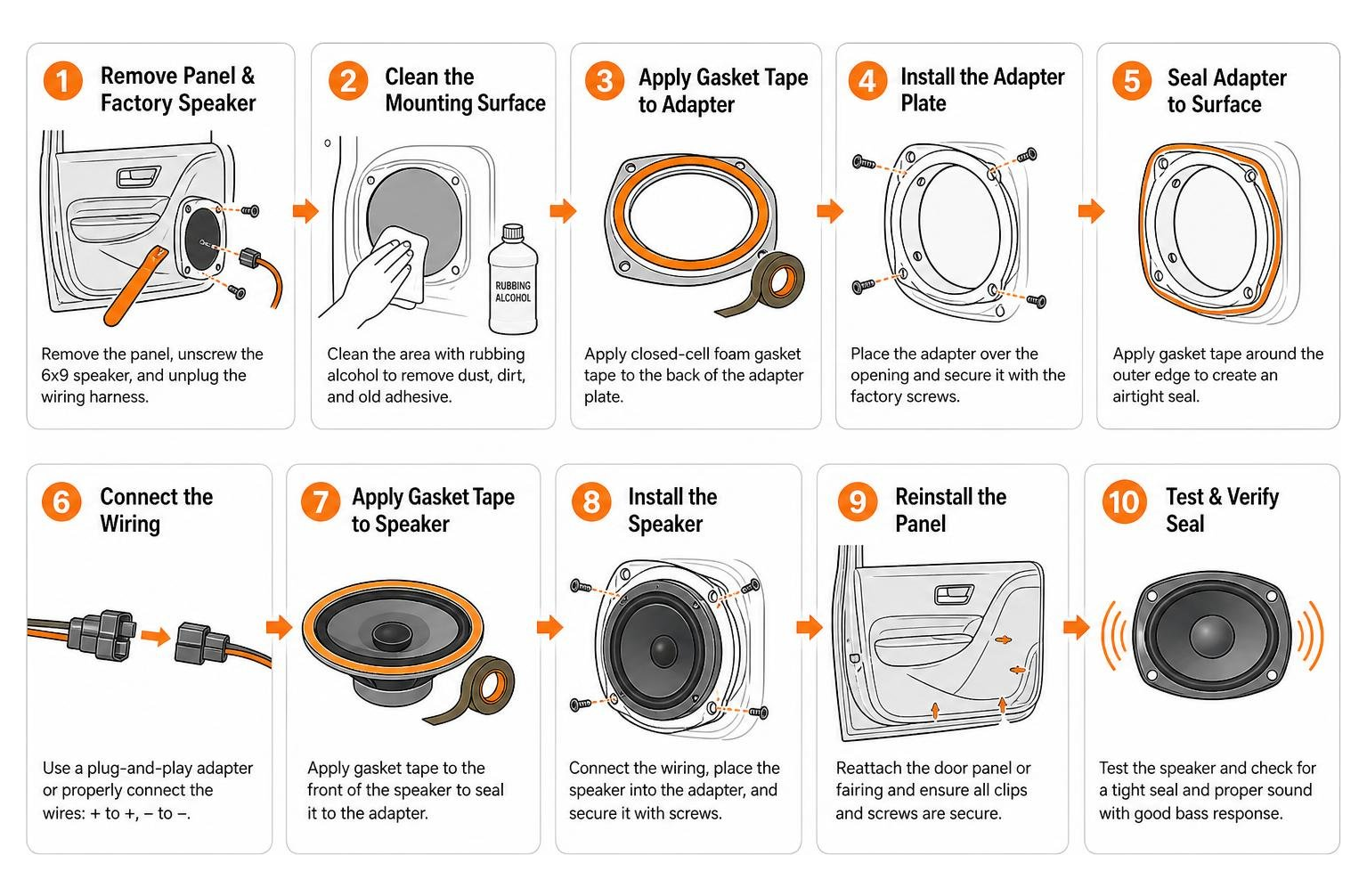

Step-by-Step Installation of Your 6x9 to 6.5 Inch Speaker Adapter
Step 1: Remove the Panel & Factory Speaker
Carefully remove your vehicle's door panel or motorcycle fairing using plastic panel tools to avoid scratching the paint or plastic. Locate the factory 6x9 speaker, unscrew the mounting bolts, and carefully unplug the factory wiring harness.
Step 2: Clean the Mounting Surface
Clean the factory mounting area with rubbing alcohol to remove any dirt, dust, or old adhesive. This ensures your new gasket tape adheres perfectly.
Step 3: Apply Gasket Tape to the Adapter
Apply a continuous strip of closed-cell foam gasket tape to the backside of your new speaker adapter plate. This creates a waterproof, airtight seal against the factory mounting structure and prevents plastic-on-metal rattles.
Step 4: Mount the Adapter Plate
Align the adapter plate with the factory 6x9 mounting holes. Secure the adapter using the factory screws or the hardware included with your kit. Tighten the screws evenly in a crisscross pattern to ensure the plate sits perfectly flush.
Step 5: Connect the Speaker Wiring
Connect your aftermarket speaker to the vehicle's wiring. If you are upgrading a motorcycle, this is a great time to ensure your connections are secure and weatherproofed to handle the elements. For more details on fairing layout and component placement, refer to our Harley Fairing Audio Upgrade guide.
Step 6: Seal and Mount the 6.5-Inch Speaker
Apply another layer of foam gasket tape to the mounting flange of the new 6.5-inch speaker. Place the speaker into the adapter's cutout, align the mounting holes, and secure it using the provided screws.
Step 7: Test Before Reassembly
Turn on your audio system and test the speaker at low volume to ensure it is working correctly. Listen closely for any air leaks or vibrations. Once everything sounds perfect, snap your door panel or fairing back into place!
Frequently Asked Questions About Speaker Adapters
Will a 6.5-inch speaker fit in a 6x9 opening without an adapter?
Absolutely not. A 6.5-inch speaker is round and significantly smaller than a 6x9-inch oval opening. Without an adapter plate, there will be massive gaps around the speaker, preventing you from aligning the mounting screws. These gaps will also cause a total acoustic short-circuit, resulting in zero bass and incredibly thin, tinny sound.
Do these adapters require cutting or drilling into the vehicle?
High-quality, vehicle-specific adapters do not require any cutting or drilling. They are engineered to utilize the exact factory bolt patterns already present in your vehicle's doors or fairings. However, if you purchase a cheap "universal" adapter, you may need to drill new mounting holes into the adapter plate itself to match your vehicle's specific layout.
How do these adapters affect bass response and sound quality?
When installed correctly with high-quality materials (like solid HDPE) and proper foam gaskets, these adapters actually improve sound quality and mid-range clarity. By providing a rigid, non-resonant mounting platform, the adapter prevents the speaker from wasting energy through panel flex. However, because a 6.5-inch speaker has less cone surface area than a 6x9, you may notice a slight reduction in ultra-low sub-bass, which is easily made up for by the vastly improved mid-bass punch and vocal clarity.
Conclusion
Upgrading your factory oval speakers to high-performance round aftermarket speakers is one of the most rewarding audio projects you can tackle. By using a precision-engineered 6x9 to 6.5 inch speaker adapter, you can seamlessly bridge the size gap, preserve your vehicle's factory mounting points, and unlock an entirely new level of acoustic performance.
