Comparing Flagship Hertz Speakers: Marine Towers, Coaxials, and Powersports
Hertz speaker options split into three core categories: long-throw common motor compression towers like the HTX 8H for extreme marine distance, flat towers and compact coaxials like the HTX 8 M and HEX 4 C-C for space-conscious nearfield listening, and high-output SPL Show drivers for powersports. When selecting audio for open-air environments—whether carving through open wakes on a boat or cruising the open highway on a Harley-Davidson Touring rig—open-air acoustics present brutal challenges. Wind noise, engine exhaust, water spray, and broad open spaces rapidly wash out inferior drivers. Hertz solves these acoustic obstacles through specialized engineering across several distinct product categories: long-throw wake tower speakers, compact marine coaxials, and high-output SPL powersport drivers.
Leading the marine tower lineup is the Hertz HTX 8H S-FL-G Common Motor Marine Tower, built specifically for extreme throw distance behind a boat. Sitting alongside it for space-conscious, wide-dispersion needs is the HTX 8 M-FL-W / C - Hertz car audio systems | The Sound Experience flat tower. For tight boat cabins, consoles, and smaller recreational craft, the compact HEX 4 C-C | 4” Marine Coaxial Speakers with Black Grille delivers high-fidelity sound where installation depth is limited.
| Model | Type | Power Handling (RMS / Peak) | Sensitivity (SPL) | Frequency Response | Mounting Depth / Dimensions | Magnet & Voice Coil |
|---|---|---|---|---|---|---|
| HTX 8H S-FL-G | Common Motor Marine Tower | 200 W / 400 W | 98 dB | 45 Hz – 25 kHz | 288 mm (11.34 in.) / 5.7 kg | High-density Ferrite Common Motor, 51 mm (2 in.) Woofer Coil |
| HTX 8 M-FL-W / C | LED Flat Tower Marine | 100 W / 200 W | 91 dB | 45 Hz – 25 kHz | 231 mm (9.09 in.) / 5.4 kg | Neodymium Tweeter, Ferrite Woofer, 32 mm (1.26 in.) Coil |
| HEX 4 C-C | 4-inch Marine Coaxial | 30 W / 60 W | 87 dB | 100 Hz – 20 kHz | 52 mm (3.25 in.) / 0.7 kg | High-density Ferrite, 25 mm (1 in.) Woofer Voice Coil |
Common Motor Compression Driver vs. Standard Flat Tower Engineering
The fundamental difference between the HTX 8H and the HTX 8 M series lies in acoustic architecture. The flagship HTX 8H utilizes a common motor compression driver. Rather than stacking separate magnets for the low-frequency cone and high-frequency transducer, Hertz houses a concentric compression driver directly behind the center of the woofer using a single high-density flux ferrite motor structure.
This shared motor assembly fires the high frequencies through an integrated horn wave guide that exits through the center of the 8-inch cone. By acoustically coupling the compression horn to the center axis, the HTX 8H achieves a massive 98 dB sensitivity rating and tightly controls sound dispersion. Sound energy remains focused in a coherent beam that punches through wind and engine noise hundreds of feet behind a wake boat without distorting. The substantial 51 mm (2-inch) woofer voice coil effortlessly handles 200 W continuous RMS power.
In contrast, the standard HTX 8 M flat tower uses a conventional coaxial layout featuring a 36 mm (1.4-inch) neodymium magnet dome tweeter suspended above an 8-inch woofer powered by a 32 mm (1.26-inch) voice coil. Operating at 91 dB SPL with 100 W RMS power handling, the HTX 8 M provides ultra-wide nearfield dispersion rather than ultra-long projection. Its shallower depth profile (231 mm versus 288 mm) makes it ideal for cockpit or wakeboard setups where overhead clearance and close-proximity listening take priority over extreme distance throwing.
Marine Durability, RGB Customization, and Mounting Formats
Both the HTX 8H and HTX 8 M enclosures are injection-molded from UV-resistant ASA polymer, engineered to survive extreme sunlight, temperature swings, and chemical exposure. To withstand relentless marine abuse, Hertz engineers these systems to meet rigorous industrial standards:
- IP65 Ingress Protection: Fully sealed against dust penetration and protected against pressurized water jets sprayed from any angle.
- ASTM-D4329 UV Resistance: Materials undergo prolonged simulated solar radiation testing to prevent chalking, cracking, or cone degradation under open-sun exposure.
- ASTM-B117 Salt Fog Testing: Terminals, crossover components, and hardware resist galvanic corrosion during extensive exposure to dense marine salt mist.
Visually, these enclosures incorporate a front-firing RGB multicolor LED lighting system integrated directly into the protective grille frame. Using an optional wireless RF remote control, users can dial in custom colors or match ambient illumination to their boat's interior theme. The front and rear Hertz logo badges are fully rotatable, ensuring that whether you choose round roll-bar tube clamps (available for standard wake tower diameters) or low-profile flat-mount brackets, the aesthetic branding remains perfectly horizontal.
Acoustic Technologies and Engineering Across the Lineup
Whether building marine tower systems, car audio components, or custom high-SPL motorcycle fairing upgrades, Hertz employs unified electro-acoustic design principles across their product lines. Engineering high-output systems that maintain tonal accuracy requires managing cone flex, voice coil heat, and off-axis phase cancellation.
For broader vehicle setups, exploring the Mille Pro Speakers - Hertz car audio systems | The Sound Experience lineup highlights the foundational innovations Hertz applies to overcome confined, off-axis vehicle cabin environments.
Proprietary Innovation in Hertz Speakers
The defining acoustic signature of Hertz transducers comes down to three proprietary mechanical breakthroughs:
- V-cone® Profile: Traditional curved cones can flex and deform during high-excursion transients, causing acoustic distortion. The Hertz exponential V-cone geometry provides structural rigidity, functioning as an acoustic megaphone that dramatically improves off-axis dispersion. This ensures high-frequency mid-range details reach the rider's ears even when speakers are mounted down in motorcycle lower fairings or vehicle kick panels.
- Boundary Free Surround: Conventional cone surrounds occupy valuable surface area on the outer frame. Hertz's Boundary Free design maximizes effective cone diameter (Sd), allowing smaller frame footprints—like 6.5-inch woofers—to displace significantly more air for punchier, tighter mid-bass.
- Center Tuning Duct: Implemented in premium high-frequency drivers, a specialized acoustic duct tuned through Finite Element Method (FEM) simulation connects the rear chamber behind the dome, lowering the tweeter's resonant frequency ($F_s$) down toward 900 Hz. This enables lower crossover points, shifting critical vocal frequencies away from the woofer for a natural, elevated soundstage.
Riders looking for warm, high-fidelity sound with extended low-end response often choose the Hertz MPK 165.3 Mille Pro 6.5 Component Speakers or standalone Hertz Mille Pro ML 1650.3 Legend 6.5 Comp Woofers for Harley. Integrating a dedicated external Hertz Crossover network ensures precise division of frequencies, protecting the delicate voice coils from out-of-band distortion.

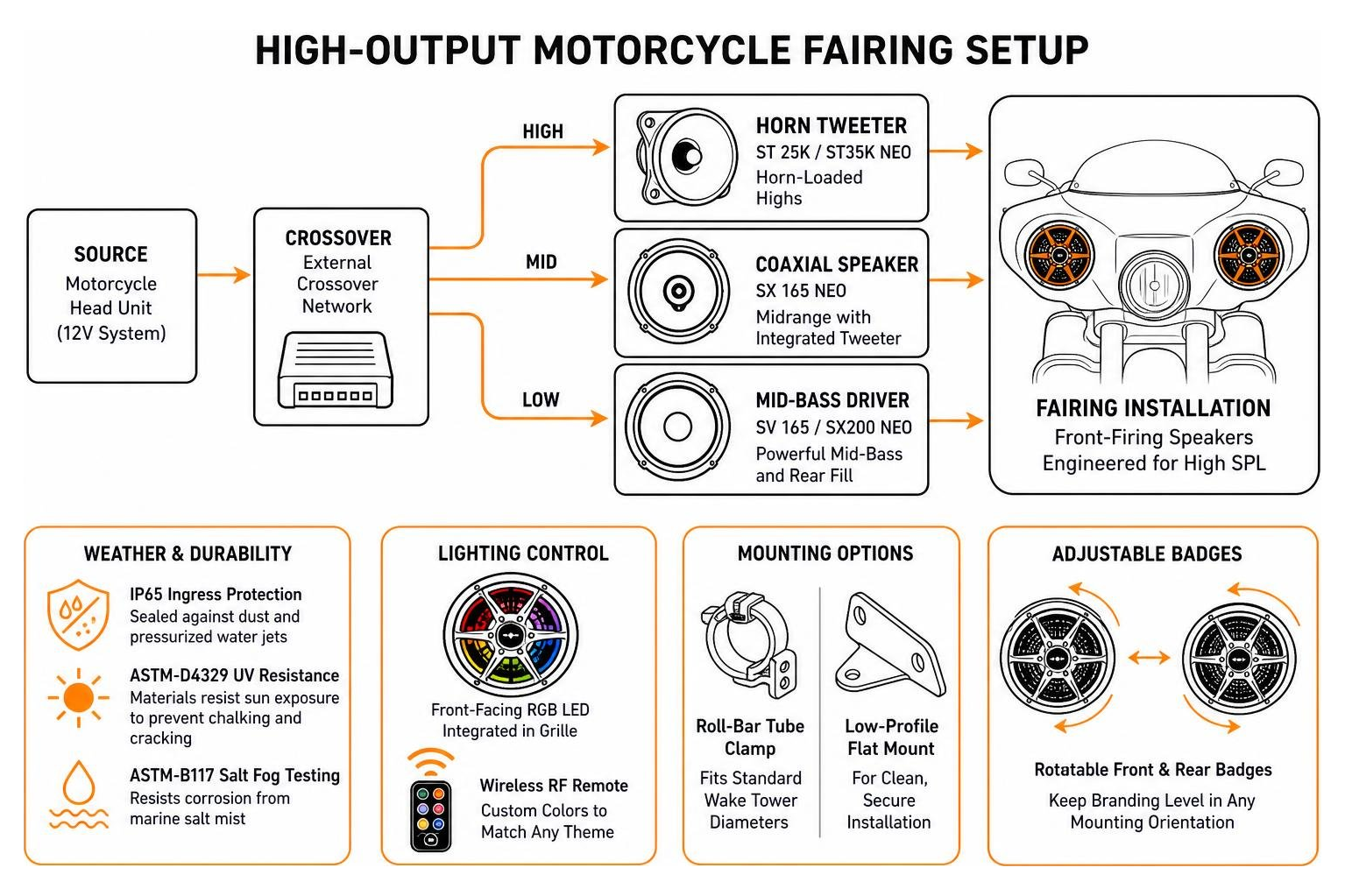

Motorcycle and Powersport High SPL Systems
While marine environments prioritize long-distance projection, motorcycle audio demands extreme forward-facing Sound Pressure Level (SPL) output within strictly confined fairings and bags. Motorcycle audio systems must overcome howling 80 mph highway wind noise, screaming exhaust pipes, and helmet wind buffeting—all while running off a motorcycle's modest 12-volt charging system.
To dominate highway noise, the Hertz SPL Show series relies on ultra-lightweight, high-flux neodymium motors:
- Fairing Upgrades: The Hertz SX 165 Neo High SPL Coax Speaker Set for Harley delivers extraordinary volume by pairing a weather-treated pressed paper cone with an integrated 1.4-inch PEI dome compression horn. For riders running custom three-way active setups, pairing the Hertz SV 165 Neo High Output 6.5 Mid-Bass Speakers for Harley with the horn-loaded Hertz ST 25K Neo Horn Tweeter Set with Grills Crossovers for Harley or larger Hertz ST35K Neo Horn Tweeter Set with Crossovers Grills for Harley produces crystalline highs that cut cleanly through any helmet at speed.
- Touring Saddlebag Applications: For rear fill and deep mid-bass presence, 8-inch drivers like the Hertz SX200 Neo High SPL Coax Speaker Set for Harley or lid-specific packages such as the Made for the New Skyline Harley Lids Hertz SX 690H Neo Waterproof 6x9 Speakers provide direct waterproof bolt-in performance for modern touring saddlebags.
System Integration, Amplification, and Low-End Reinforcement
High-sensitivity speakers cannot perform at their peak without clean, unclipped amplifier power and a balanced input signal. Building a high-end audio setup requires matching continuous RMS ratings, setting proper crossover slopes, and integrating low-end reinforcement.
How to Power and Tune Hertz Speakers for Peak Performance
Hertz high-output speakers feature low-inductance voice coils designed for swift transient response, but underpowering them with distorted, clipping factory head-unit power will quickly overheat voice coils. Pairing high-SPL drivers with dedicated multi-channel amplifiers guarantees dynamic headroom:
- Compact Amplification: The Hertz SP4 500 4 Channel 600W RMS Amplifier provides exceptional clean power in space-constrained fairings and utility compartments.
- Maximum Output Systems: For multi-speaker bags and fairing lowers requiring massive continuous current, the Hertz SP4 900 4 Channel 1000W RMS Amplifier delivers serious wattage into 2-ohm and 4-ohm configurations.
- DSP Calibration: Modern factory audio sources apply aggressive, volume-dependent EQ curves that ruin aftermarket speaker performance. Installing the Hertz S8 DSP flattens incoming factory signals, giving you complete control over 31-band parametric equalizers, time alignment, and active crossover slopes (Butterworth and Linkwitz-Riley up to 24 dB/octave).
- Direct Harnessing: When integrating high-current amplifiers into motorcycle fairings, using a heavy-gauge plug-and-play Hertz HHP14 Fairing Amp Power Harness protects your vehicle's factory electrical system while eliminating messy wire splicing.
Subwoofer Integration and Complete System Packages
True full-range audio requires dedicated subwoofers to reproduce sub-bass frequencies below 80 Hz, freeing up your 6.5-inch and 8-inch fairing and tower speakers to focus entirely on clean, punchy mid-bass and vocal clarity.
Because marine hulls and motorcycle saddlebags offer limited air volume, shallow-mount subwoofers are essential. The Hertz Mille Pro MPS 250 S4 1000W 4Ω 10 Sub Driver and its 2-ohm variant, the Hertz Mille Pro MPS 250 S2 1000W 2Ω 10 Sub Driver, feature an ultra-slim chassis with an advanced cooling system capable of delivering 500 W continuous RMS in sealed enclosures as small as 0.5 cubic feet.
For cost-effective, high-output bass in custom luggage or storage compartments, the Hertz Cento CS 250 S2 600 Watt 2Ω 10 Woofer and the compact Hertz Cento CS 200 S4 300W 4Ω 8 Woofer reproduce warm, musical bass notes even when operating in infinite baffle configurations. For self-contained vehicle cabin setups, reviewing our guide on tuning a Hertz Active Subwoofer can help you rapidly balance low-end gains with your front soundstage.
Frequently Asked Questions About Hertz Speakers
What makes common motor compression drivers different from standard marine speakers?
Common motor compression drivers (like the Hertz HTX 8H) mount a high-frequency compression horn concentrically inside the woofer magnet assembly, sharing a single unified high-density flux ferrite motor. Traditional marine speakers place a standard dome tweeter on a pole piece in front of the woofer. The common motor compression design yields substantially higher acoustic efficiency (98 dB SPL), broader directivity control via an integrated waveguide, and vastly superior long-range sound projection across open water.
What environmental durability standards do Hertz marine speakers meet?
Hertz marine products undergo rigorous laboratory stress testing to achieve Hertz Pure Marine Certification. This includes IP65 ingress protection ratings to prevent water jet and dust intrusion, ASTM-D4329 compliance for multi-year UV radiation resistance without material embrittlement, and ASTM-B117 salt fog chamber exposure to prevent terminal and component corrosion in saltwater environments.
How much amplifier power is recommended for high-SPL Hertz drivers?
For optimal performance and transient control, match your amplifier’s continuous RMS output to the speaker’s continuous RMS rating (not its peak power handling). For example, feed the 200 W RMS HTX 8H tower speaker with a clean 175 W to 225 W RMS amplifier channel at 4 ohms. Delivering adequate, unclipped RMS power preserves dynamic headroom, prevents destructive signal clipping, and keeps voice coils operating within safe thermal parameters.
Conclusion
Building a high-output, concert-grade sound system requires choosing the right speaker architecture for your specific environment. From long-throw marine towers like the HTX 8H to compact waterproof coaxials and ultra-loud motorcycle fairing speakers, Hertz combines Italian acoustic engineering with rugged, all-weather durability.
At American Hard Bag, we engineer plug-and-play audio upgrades, precision saddlebag mounting kits, and powerhouse audio packages tailored specifically to handle the demands of the open road. If you are ready to transform your ride's acoustic clarity and highway volume, explore premium high-output Harley speakers engineered to fit your bike seamlessly.
